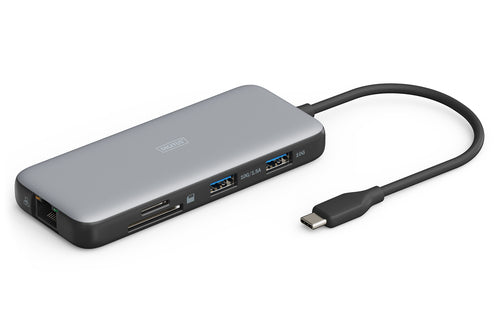

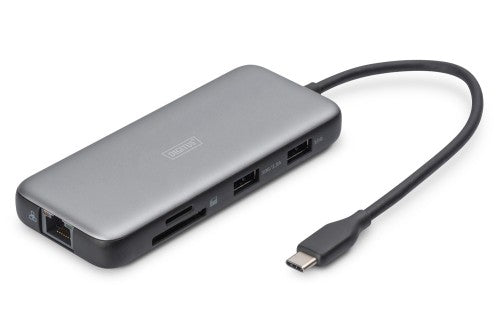

Digitus USB-C docking station, 8-port

USB-C Docking Station, 8-Port 2xHDMI,3xUSB3.0,1xRJ45,1xSD,1xMicroSD,1xUSB-CPD

Key Features

• Connections:
• 1x USB-C (3.2 Gen 2) input - Host PC connection
• 2x HDMI (2.0) output - Max. Resolution: UHD 4K/60Hz
• 2x USB-A 3.2 Gen 2 connection - 10 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A), 1x 4.5W (5V/0.9A)
• 1x RJ 45 Gigabit Ethernet - 10/100/1000 Mbit/s bandwidth
• 2x card reader - 1x SD/1x MicroSD (up to 104 MBps)
• 1x USB-C Power Delivery - 100 watts max. (85W host, 15W dock)
• Chipset information: VL822T-Q7, VL102, KTM5000, RTS5306, RTL8153B-VC
• Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)
• Supports HDR (High Dynamic Range)
• Supports HDCP 2.2, HDCP 1.4, HDCP 1.3
• Short-circuit, overcurrent and overvoltage protection
• Product color: Grey / Black
• Housing: aluminum / plastic
• Weight: 106 g
• Dimensions: L 12 x W 5 x H 1.55 cm
• Operating temperature : 0°C - + 40°C
• Cable length: 20 cm
• Cable color: Black
• Notes:
• Not all USB-C ports support all functions of the USB-C standard. Make sure that the USB-C port on your notebook supports DisplayPort Alternate Mode (DP-Alt Mode) and USB Power Delivery (PD)
• Supports dual monitor with 2x 4K/60Hz in MST mode (Multi Stream Transport Mode / screen extension)
• Supports dual monitor with 2x 4K/60Hz in SST mode (Single Stream Transport Mode / screen mirroring)
• The video output capability (actual resolution) depends on the graphics card of your notebook, the connected monitor and the DP mode.
• To use the full range of functions, the notebook must support DP 1.4 Alt Mode
• When both USB-A 3.2 Gen 2 ports are used simultaneously, there is a difference in charging performance due to the joint limitation of the ampere output to a total of 2A.
• Compatibility exists with the following operating systems up to their current versions: From Windows 7, from macOS 12, from iPhone 15 (iOS) , from iPadOS 16, from Android 14, from ChromeOS 116.0.5845.120, from Linux 22.04 LTS
• MST is supported: Windows, Chrome, Linux
• SST is supported: Windows, macOS, iOS, iPadOS, Android, ChromeOS, Linux

Description

Expand your notebook with 8 additional ports - Optimize your workstation environment by using external monitors, additional peripherals and much more.

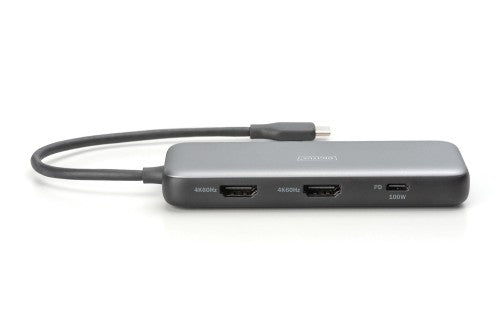

- 2x HDMI port (4K/60Hz) - Expand your workstation with two external monitors
- Supports dual monitor with 2x 4K/60Hz in MST mode (expand screen) - Windows, ChromeOS, Linux
- Supports dual monitor with 2x 4K/60Hz in SST mode (screen mirroring) - Windows, macOS, iOS, iPadOS, Android, ChromeOS, Linux

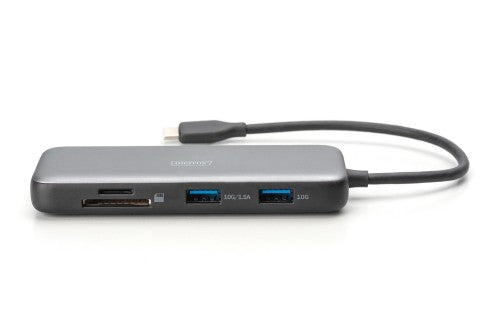

- 2x USB-A 3.2 Gen 2 port (10 Gbit/s) for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices

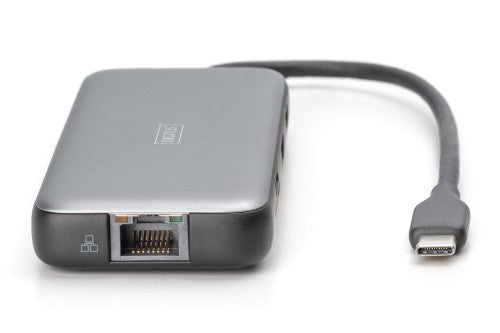

- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging the notebook
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
- Integrated USB-C connection cable (20 cm) - Flexible connection to the host PC
- Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)

Expand your notebook with our USB-C 8-port docking station. With two HDMI ports, you can connect two external monitors in 4K quality and expand your screen space. In SST mode (screen mirroring), the docking station supports dual monitors with 2x 4K/60Hz. In MST mode (screen extend) it supports dual monitor with 2x 4K/60Hz. Work more efficiently by using multiple applications simultaneously on different screens. The two USB-A 3.2 Gen 2 ports (10 Gbit/s) enable ultra-fast data transfer and smooth use of external devices. The Gigabit Ethernet port (RJ45) provides reliable network connections, while the integrated card readers (SD/MicroSD) allow fast data transfer from memory cards. The USB-C Power Delivery port charges your notebook without interrupting the connection thanks to PD 3.0 Fast Role Swap. The integrated 20 cm USB-C connection cable offers flexibility, while HDR support ensures an impressive visual experience.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDCP version	1.4/2.2
HDCP	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black, Grey
Card reader integrated	Yes
Plug and Play	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium, Plastic
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
Technical details
Product colour	Black, Grey
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
Power connector	USB Type-C
USB cable length	0.2 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iOS
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	106 g
Width	50 mm
Depth	120 mm
Height	15.5 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black, Grey
LED indicators	Yes
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Quantity per pack	1 pc(s)
