Description

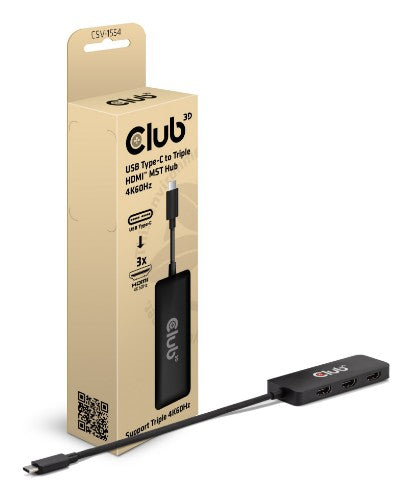

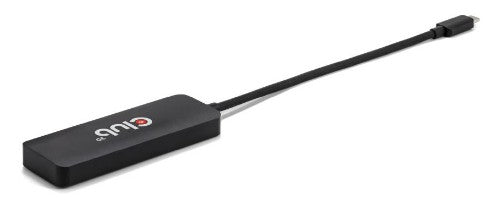

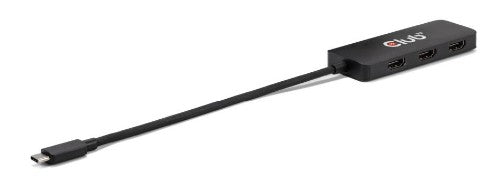

USB Type-C to Triple HDMI MST Hub 4K60Hz
Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort Supported port available you can now drive up to 3x HDMI screens simultaneously . All it needs is a free USB Type-C with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Triple 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.
Key Features
- Support DP2.1 AlternateMode USB Type-C Devices
- Support SST mode at MAC OS®
- Support MST mode at Windows®
- Support Max 8K30Hz for One video Output
- Support to output Dual Displays 8K30Hz + 4K144Hz
Description
The CSV-1554 is a MST hub to HDMI™. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB Type-C output which supports DP™ Alt-Mode as Host to 3 HDMI ports with Ultra High Definition support. It supports DP2.1 AltMode and will allow you to output one Display with max capability of a single 8K30Hz or dual displays of 8K30Hz + 4K144Hz support or triple displays of 4K60Hz Each. It supports on all DisplayPort Alternate Mode supported USB Type-C or Thunderbolt4 compatible devices.Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort Supported port available you can now drive up to 3x HDMI screens simultaneously . All it needs is a free USB Type-C with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Triple 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB Type-C |
| HDMI ports quantity | 3 |
| Hub interfaces | HDMI |
| Ports quantity | 3 |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Features | |
| Product colour | Black |
| Cable type | Round cable |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 Hz |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Host interface | USB Type-C |
| Power | |
| Power supply type | USB |
| Technical details | |
| Product colour | Black |
| Plastic packaging weight | 5 g |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Weight | 53 g |
| Package width | 60 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 103 g |
| Packaging data | |
| Package type | Hanging box |
| Package width | 60 mm |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package weight | 103 g |
| Design | |
| Product colour | Black |
| Performance | |
| Harmonized System (HS) code | 8473 3020 |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 45 g |
| Logistics data | |
| Harmonized System (HS) code | 8473 3020 |
| Packaging content | |
| Package type | Hanging box |
| Other features | |
| Cable type | Round cable |
