Description

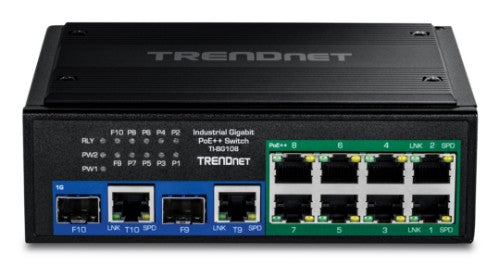

10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.
Key Features
- 8 x Gigabit PoE++ ports
- 2 x Gigabit shared ports (RJ-45 / SFP)
- 400W PoE power budget
- 20Gbps switching capacity
- Hardened IP50 rated metal switch

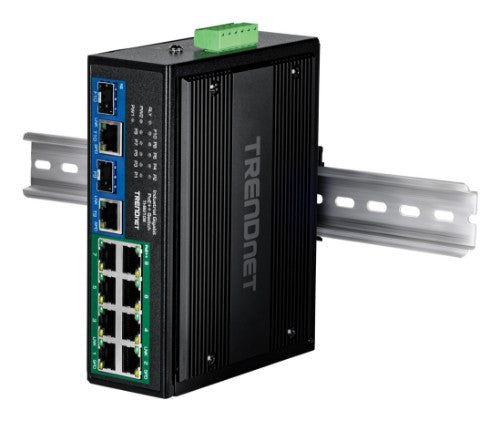

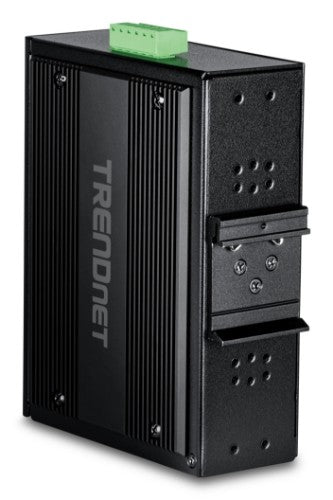

- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

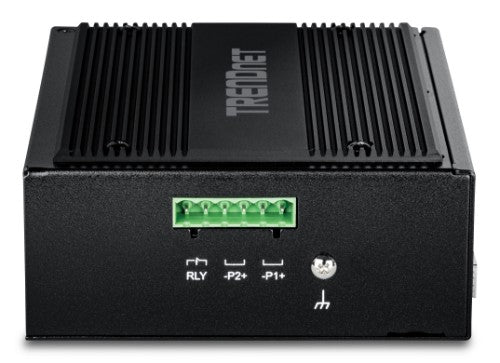

- Dual power inputs for redundancy
- Alarm output triggered by power failure
- Power supply sold separately (TI-S48048, TI-S24052)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.
Specifications
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.4 MB |
| MAC address table | 11000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 8.9 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP50 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Certification | CE FCC |
| Performance | |
| Mean time between failures (MTBF) | 515469 h |
| Packet buffer memory | 0.4 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 8.5 W |
| DC input voltage | 48 - 56 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 156 mm |
| Depth | 122 mm |
| Height | 48 mm |
| Weight | 602 g |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 515469 h |
| Housing material | Metal |
| Memory | |
| Packet buffer memory | 0.4 MB |
| Certificates | |
| Certification | CE FCC |
