Bendable LC-LC Singlemode fibre cable duplex 10m OS2 LSZH
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Yellow
- Bending radius: 30 mm
- LC/UPC Connector
- Cable Diameter 2.0mm
Description

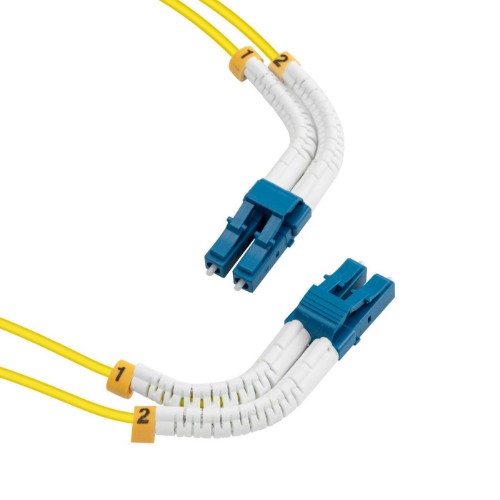

The Lanview Bendable series are designed for versatile cable management, capable of bending and maintaining any angle from straight to 90 degrees. The boot, molded over a single stainless-steel wire, can be easily positioned by hand, with the internal wire ensuring it holds the desired angle or direction.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
LC/LC |
| Cable length |
10 m |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Doesn't contain |
Halogen |
| Warranty period |
25 year(s) |
| Compliance certificates |
REACH, RoHS |
| Features |
|---|
| Compressive strength |
10 |
| Bending radius |
3 cm |
| Fibre optic type |
OS2 |
| Return loss |
50 dB |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
LC/LC |
| Cable length |
10 m |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Insertion loss |
0.3 dB |
| Wavelengths supported |
1310,1490,1550 nm |
| Product colour |
Yellow |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector polish type |
UPC |
| Plug and Play |
Yes |
| Cable shape |
Round |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Bending radius |
3 cm |
| Cable length |
10 m |
| Package width |
180 mm |
| Package depth |
40 mm |
| Package height |
200 mm |
| Cable diameter |
2 mm |
| Weight |
180 g |
| Package weight |
180 g |
| Packaging data |
|---|
| Package width |
180 mm |
| Package depth |
40 mm |
| Package height |
200 mm |
| Package weight |
180 g |
