Description

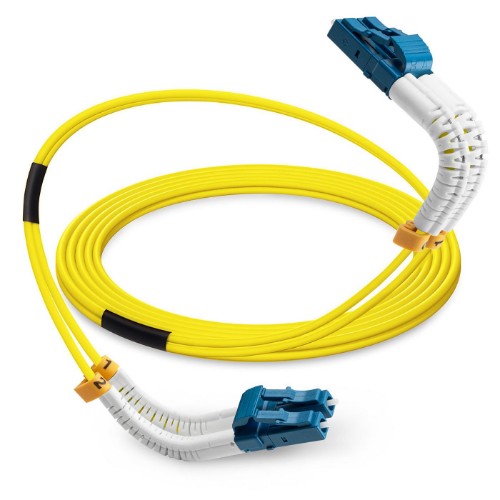

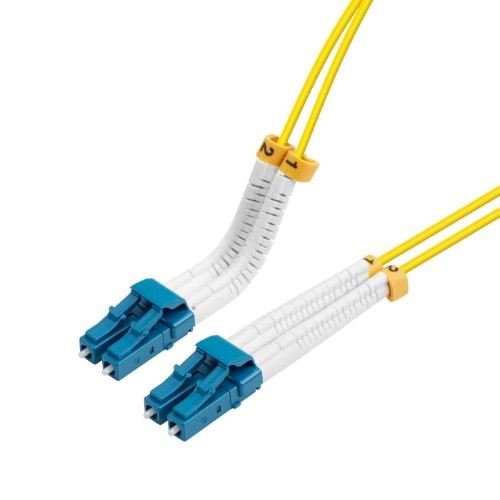

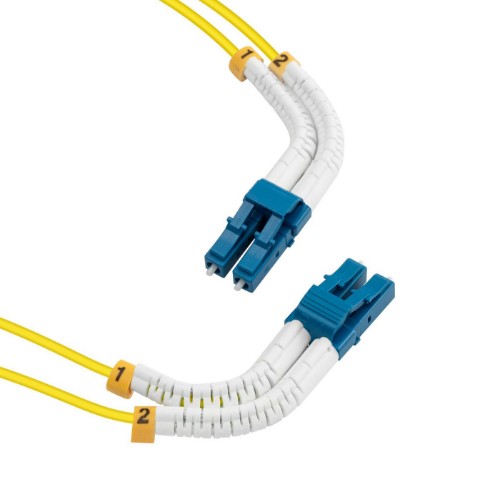

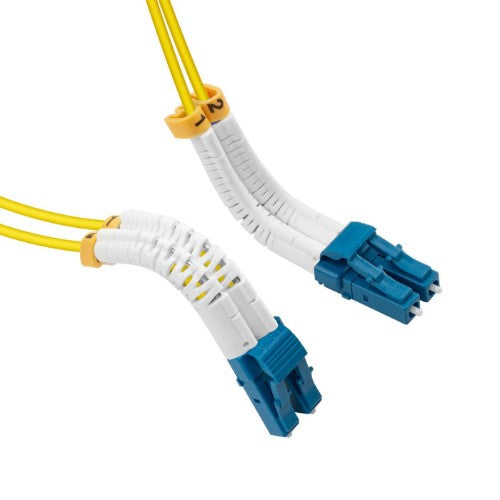

Bendable LC-LC Singlemode fibre cable duplex 2m OS2 LSZH
The boot's design permits reshaping at any moment or straightening for the disconnection of connectors. This flexibility guarantees ideal connector installation in unique circumstances, like areas with restricted space or within high-density settings.
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Yellow
- Bending radius: 30 mm
- LC/UPC Connector
- Diameter 2.0mm
Description
The Lanview Bendable series offers a versatile solution for cable management, capable of bending and sustaining any angle from a straight line up to 90 degrees. Its boot, molded around a single stainless-steel wire, is manually adjustable, allowing the internal wire to preserve the chosen angle or direction.The boot's design permits reshaping at any moment or straightening for the disconnection of connectors. This flexibility guarantees ideal connector installation in unique circumstances, like areas with restricted space or within high-density settings.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Warranty period | 25 year(s) |
| Compliance certificates | REACH, RoHS |
| Features | |
| Compressive strength | 10 |
| Bending radius | 3 cm |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Insertion loss | 0.3 dB |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Cable shape | Round |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable length | 2 m |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Cable diameter | 2 mm |
| Weight | 40 g |
| Package weight | 40 g |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 40 g |
