Description

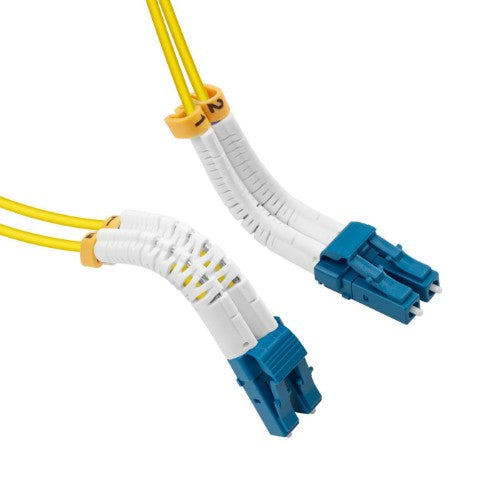

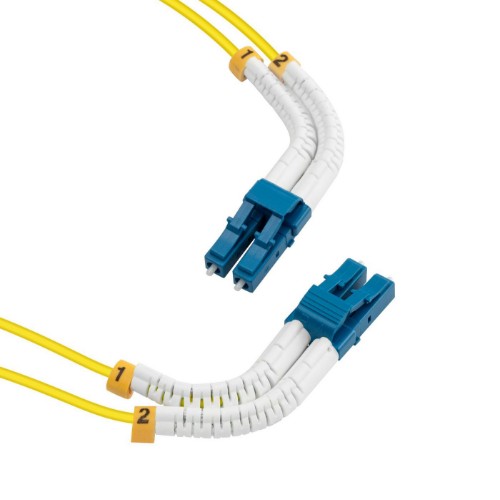

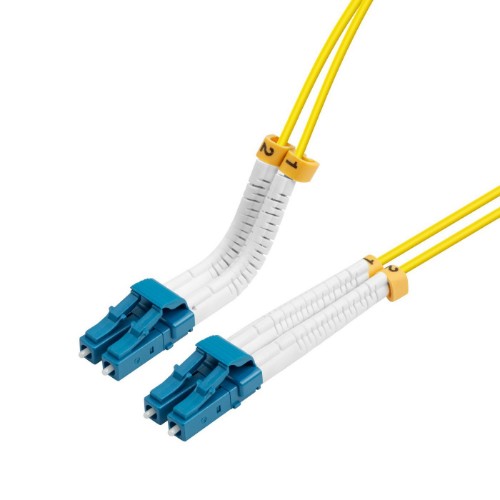

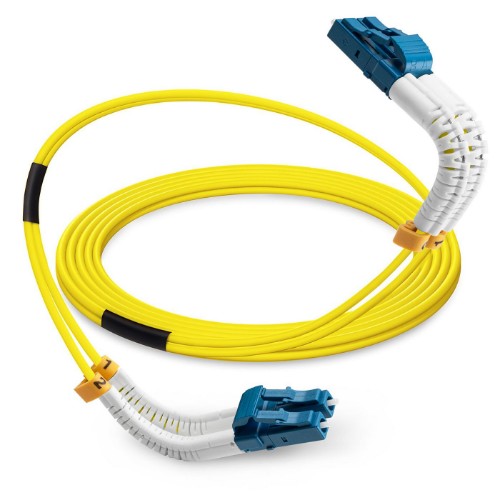

Bendable LC-LC Singlemode fibre cable duplex 0,5m OS2 LSZH
the boot can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments.
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Yellow
- Bending radius: 30 mm
- LC/UPC Connector
- Diameter 2.0mm
Description
The Lanview Bendable series is designed for flexible cable management, able to bend and hold any angle from a straight line to 90 degrees. The boot, shaped over a single stainless-steel wire, can be effortlessly positioned by hand, while the internal wire guarantees it retains the chosen angle or direction.the boot can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 0.5 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Warranty period | 25 year(s) |
| Compliance certificates | REACH, RoHS |
| Features | |
| Compressive strength | 10 |
| Bending radius | 3 cm |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 0.5 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Insertion loss | 0.3 dB |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Cable shape | Round |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable length | 0.5 m |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Cable diameter | 2 mm |
| Weight | 10 g |
| Package weight | 10 g |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 10 g |
