Description

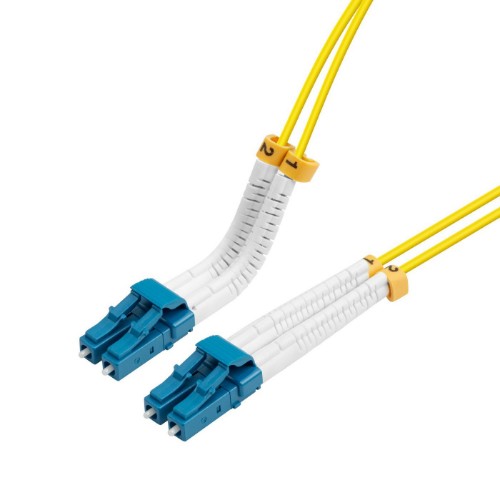

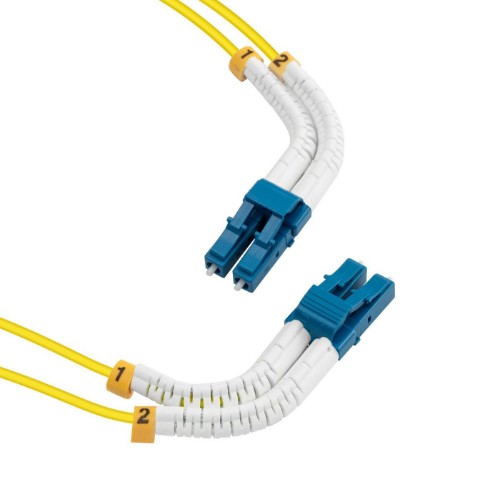

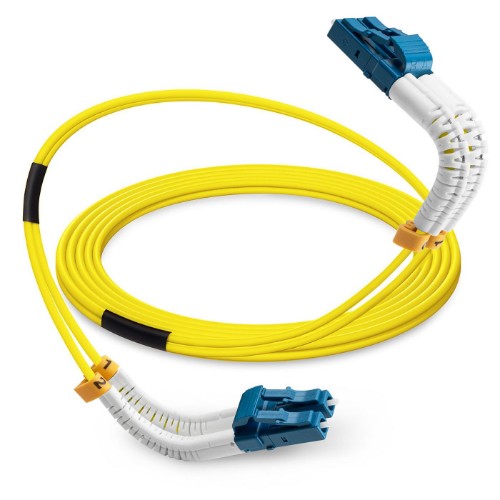

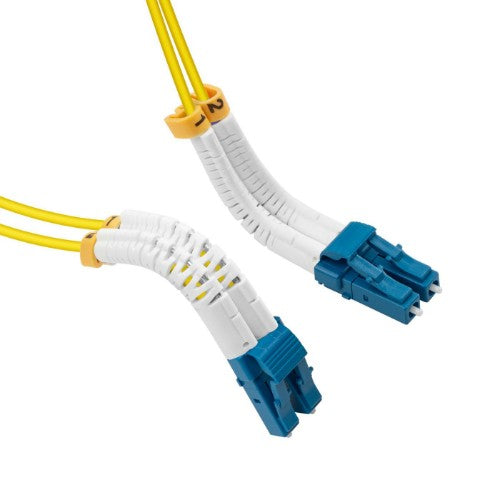

Bendable LC-LC Singlemode fibre cable duplex 1m OS2 LSZH
The boot can be reformed at any moment or straightened for disconnecting connectors. This feature allows for optimal installation of the connector in specialized scenarios, including areas with tight constraints or in high-density settings.
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Yellow
- Bending radius: 30 mm
- LC/UPC Connector
- Diameter 2.0mm
Description
The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, can be effortlessly positioned by hand, while the internal wire guarantees it retains the chosen angle or direction.The boot can be reformed at any moment or straightened for disconnecting connectors. This feature allows for optimal installation of the connector in specialized scenarios, including areas with tight constraints or in high-density settings.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Warranty period | 25 year(s) |
| Compliance certificates | REACH, RoHS |
| Features | |
| Compressive strength | 10 |
| Bending radius | 3 cm |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Insertion loss | 0.3 dB |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Cable shape | Round |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3 cm |
| Cable length | 1 m |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Cable diameter | 2 mm |
| Weight | 20 g |
| Package weight | 20 g |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 20 g |
