Description

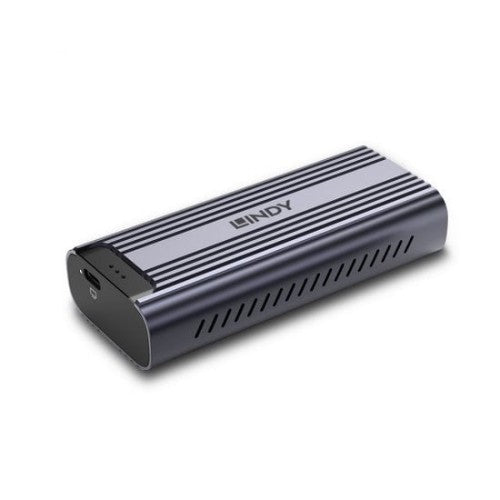

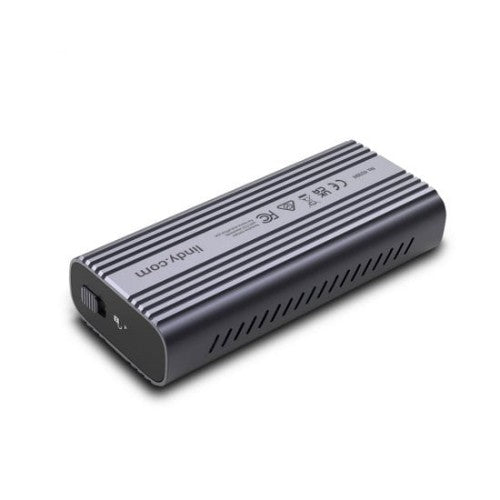

USB4 NVMe M.2 SSD Enclosure

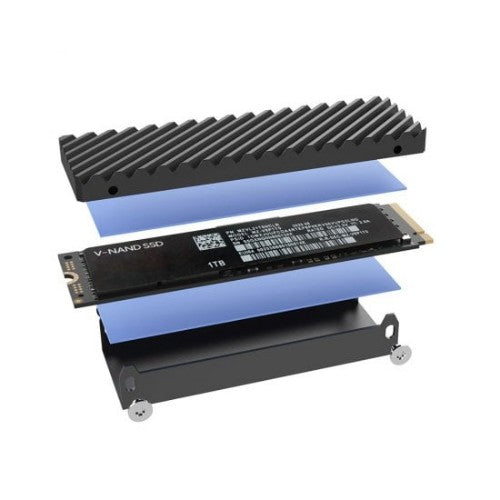

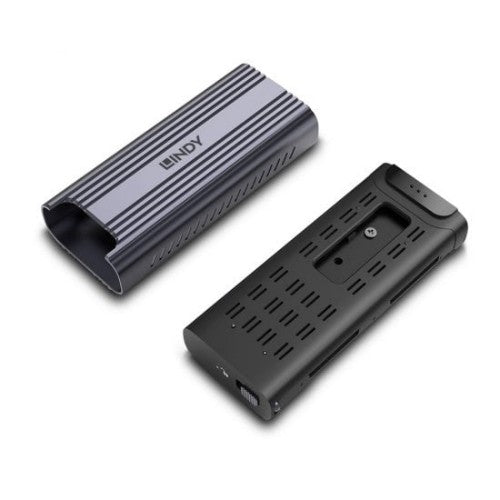

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths. The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.
* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.
Key Features
- Aluminium Enclosure for PCIe/NVMe based M.2 SSDs (not included)
- USB4 standard with extremely fast 40Gbps data transfer rates*
- Aluminium housing with Aluminium heatsink for excellent heat dissipation, ensuring a suitable operating temperature
- Plug & Play, no drivers required
Description
The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt 3/4 hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths. The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.
* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.
Specifications
| Storage | |
|---|---|
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Installed storage drive type | SSD |
| Supported storage drive interfaces | PCI Express |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB connector type | USB Type-C |
| Technical details | |
| Material | Aluminium |
| Data transfer rate | 40 Gbit/s |
| Product colour | Grey |
| Cable length | 0.15 m |
| Design | |
| Product type | SSD enclosure |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Material | Aluminium |
| Product colour | Grey |
| Cable length | 0.15 m |
| Performance | |
| Data transfer rate | 40 Gbit/s |
| Packaging data | |
| Package weight | 200 g |
| Package width | 180 mm |
| Package depth | 105 mm |
| Package height | 30 mm |
| Certificates | |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Weight | 88 g |
| Width | 107 mm |
| Depth | 47 mm |
| Height | 24 mm |
| Package weight | 200 g |
| Cable length | 0.15 m |
| Package width | 180 mm |
| Package depth | 105 mm |
| Package height | 30 mm |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Screwdriver included | Yes |
