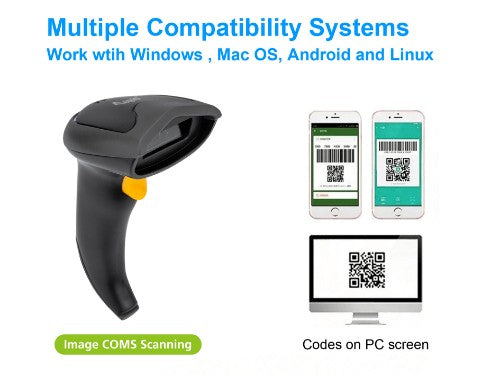

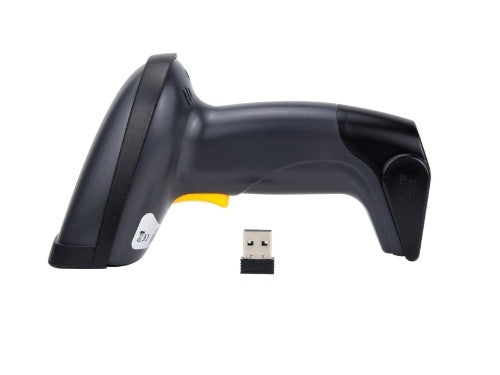

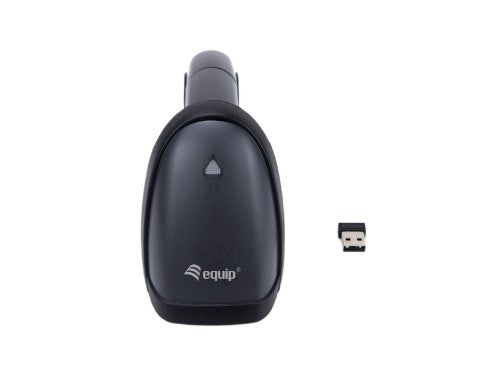

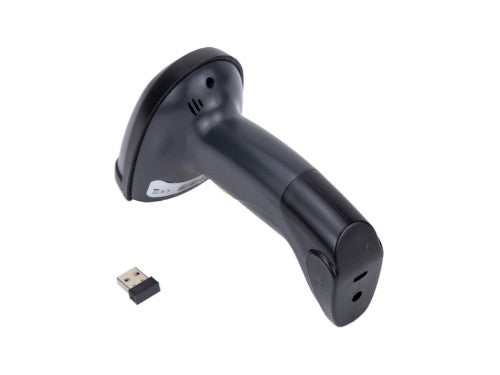

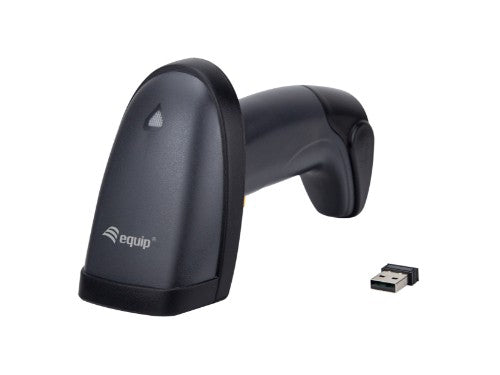

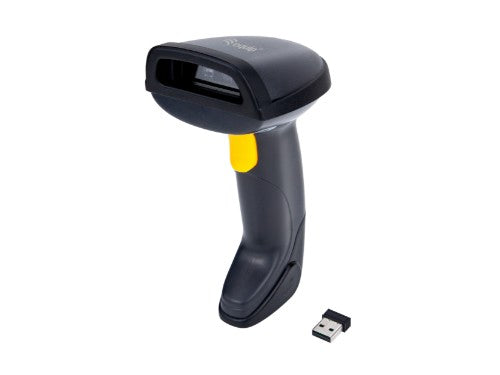

Equip Wireless 2D Dual Mode 2.4GHz + Bluetooth Barcode Scanner, with Stand

Wireless 2D Dual Mode 2.4GHz + Bluetooth Barcode Scanner, with Stand

Key Features

• Wireless Dual Mode 2.4Ghz + Bluetooth 2D CMOS IMAGE Barcode Scanner.
• High-Resolution Imaging: Captures sharp and detailed images for accurate decoding.
• Precise scanning of 1D & 2D barcodes, ( barcodes & QR code )
• Efficiently deciphers linear barcodes for retail and inventory management.
• Durable Construction: Robust design to withstand daily use and potential drops.
• Protected and water-resistant (IP54).
• Wide Scan Range: Reads barcodes from various distances and angles.
• Multiple Scanning Modes: Options for manual, continuous , Auto-induction mode scanning.

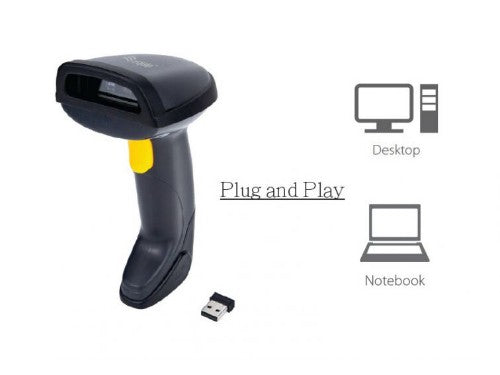

• Plug-and-play functionality for quick setup
• Pairing ability base station support up to 4 scanners connection
• Memory save over 2,000 scans data (@ barcode length < 15 bytes)
• Build in battery 3.7V 1500mAh Li-ion.
• Working time : around 20hours, Standby: 3 months.

Description

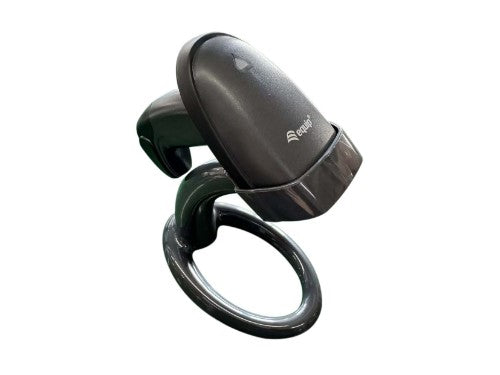

The Equip Wireless 2.4Ghz + Bluetooth Dual Mode 2D Barcode Scanner with Stand is a versatile and efficient scanning solution suitable for various industries. With its wireless functionality, it provides freedom of movement, making it ideal for applications in retail, warehousing, and inventory management. The included stand enables hands-free operation, enhancing productivity and reducing user fatigue.

This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its 2D scanning capability allows it to read a wide range of barcodes, including QR codes and Datamatrix, ensuring efficient data capture. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.

Specifications

Scanning
Scanner resolution	4 mm
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Yaw reading angle	-35 - 35°
Working distance	150 cm
Tilt reading angle	0 - 360°
Sensor type	CMOS
Scanner type	1D/2D
Read rate (max)	220 reads/s
Pitch reading angle	-30 - 30°
Trigger mode	Auto-induction, Continuous, Manual
Depth of field range	60 cm
Ports & interfaces
Connectivity technology	Wireless
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, RF Wireless
Performance
Protection features	Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP54
Product colour	Black
Country of origin	China
Design
Type	Handheld bar code reader
Protection features	Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP54
Product colour	Black
Power
Power source type	Battery
Battery life	20 h
Battery voltage	3.7 V
Battery type	Built-in battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1500 mAh
Weight & dimensions
Width	72 mm
Depth	101 mm
Height	175 mm
Weight	187 g
Package width	150 mm
Package depth	207 mm
Package height	100 mm
Package weight	465 g
Technical details
Type	Handheld bar code reader
Protection features	Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mobile operating systems supported	Android, iOS
International Protection (IP) code	IP54
Product colour	Black
Harmonized System (HS) code	8471900000
Compliance certificates	CE, RoHS
Packaging data
Package width	150 mm
Package depth	207 mm
Package height	100 mm
Package weight	465 g
Cables included	USB Type-A to USB Type-C
Stand included	Yes
Receiver included	Yes
Operational conditions
Storage temperature (T-T)	-40 - 90 °C
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Battery
Battery capacity	5.55 Wh
Standby time	3 month(s)
Packaging content
Cables included	USB Type-A to USB Type-C
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	440 mm
Master (outer) case gross weight	15.5 kg
Master (outer) case length	485 mm
Master (outer) case height	525 mm
Harmonized System (HS) code	8471900000
Other features
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mobile operating systems supported	Android, iOS
Quick start guide	Yes
Linux operating systems supported	Yes
