Description
1920 x 1200, 5000 lm, 16:10, 20000:1 contrast, 1.54 to 1.72 (1524 mm@2000 mm) trow, 1.07B colors, 5000 H, HDMI, USB, VGA, 100-240V, 275W, 0 - 40°C, 2.80 kg
5,000 Lumens Brightness
See crystal-clear, vibrant images from a distance in lecture halls, auditoriums or any large venues with up to 5,000 lumens of brightness.
Acer ColorBoost3D™
Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D™ technology.
WXGA Resolution
With 1280x800 WXGA resolution, project in confidence with sharper, more detailed images and video than you have come to expect from standard projectors.
Acer LumiSense™
Acer LumiSense™ adjusts the image brightness and color saturation based on the content you're viewing.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.
Acer ColorSafe II
Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.
Automatic Vertical Keystone Correction
Finding the right angle for your presentation is easier with auto keystone correction, which corrects vertical distortion.
Integrated Speakers[1]
What you hear will be just as good as what you see with the powerful built-in speakers.
Eco-Mode
Enjoy power-saving features that extend lamp life, auto-shut down when idle, and reduce noise levels when in Eco mode.
Key Features
- Acer ColorBoost3D™
- WXGA Resolution
- Acer LumiSense™
- Acer BlueLightShield™
- Acer ColorSafe II
- Automatic Vertical Keystone Correction
- Eco-Mode
Description
Experience an ultra-bright 5,000 lumens of brightness and crisp WXGA resolution with the Acer X1328 projector, an easy-to-use device for all your projection needs.5,000 Lumens Brightness
See crystal-clear, vibrant images from a distance in lecture halls, auditoriums or any large venues with up to 5,000 lumens of brightness.
Acer ColorBoost3D™
Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D™ technology.
WXGA Resolution
With 1280x800 WXGA resolution, project in confidence with sharper, more detailed images and video than you have come to expect from standard projectors.
Acer LumiSense™
Acer LumiSense™ adjusts the image brightness and color saturation based on the content you're viewing.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilizing Acer BlueLightShield™ technology.
Acer ColorSafe II
Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.
Automatic Vertical Keystone Correction
Finding the right angle for your presentation is easier with auto keystone correction, which corrects vertical distortion.
Integrated Speakers[1]
What you hear will be just as good as what you see with the powerful built-in speakers.
Eco-Mode
Enjoy power-saving features that extend lamp life, auto-shut down when idle, and reduce noise levels when in Eco mode.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colours |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 685.8 - 7620 mm (27 - 300") |
| Projection distance | 1 - 10 m |
| Contrast ratio (typical) | 20000:1 |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Projector brightness (economic mode) | 4000 ANSI lumens |
| Uniformity | 80% |
| Maximum digital resolution | 1920 x 1200 pixels |
| Keystone correction, vertical | -40 - 40° |
| Projection technology | DLP |
| Projector brightness | 5000 ANSI lumens |
| Zoom type | Manual |
| Lamps | |
| Lamp type | OSRAM |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Light source | |
| Lamp type | OSRAM |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Focal length range | 21.85 - 24 mm |
| Aperture range (F-F) | 2.41 - 2.53 |
| Throw ratio | 1.54 - 1.72 |
| Optical zoom | 1.1x |
| Offset | 125% |
| Digital zoom | 2x |
| Zoom type | Manual |
| Scanning frequency | |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Video | |
| Digital signal format system | EDTV, HDTV, SDTV |
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |

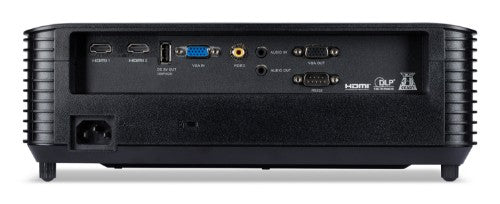

| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| Network | |
| Wi-Fi | No |
| Sound emission | |
| Noise level (economic mode) | 27 dB |
| Technical details | |
| Product colour | Black |
| HDCP | Yes |
| Security features | Security Bar |
| Special features | Acer ColorBoost3D™ Acer LumiSense™ Acer BlueLightShield™ Acer ColorSafe II Automatic Vertical Keystone Correction Eco-Mode |
| Lamp power | 240 W |
| Quantity per pack | 1 pc(s) |
| Digital signal format system | EDTV, HDTV, SDTV |
| Packaging content | Lens Cap Security Card |
| Performance | |
| Market positioning | Business |
| Mac compatibility | Yes |
| HDCP | Yes |
| Windows operating systems supported | Yes |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Other operating systems supported | ChromeOS |
| Noise level (economic mode) | 27 dB |
| Features | |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
| Design | |
| Market positioning | Business |
| Cable lock slot type | Kensington |
| Product colour | Black |
| LED indicators | Light, Power, Temperature |
| Placement | Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power consumption (typical) | 275 W |
| Power consumption (standby) | 0.5 W |
| Security | |
| Cable lock slot type | Kensington |
| Indication | |
| LED indicators | Light, Power, Temperature |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
| Packaging content | |
| Packaging content | Lens Cap Security Card |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, VGA |
| Batteries included | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Security features | Security Bar |
| RS-232 ports | 1 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Special features | Acer ColorBoost3D™ Acer LumiSense™ Acer BlueLightShield™ Acer ColorSafe II Automatic Vertical Keystone Correction Eco-Mode |
