Description

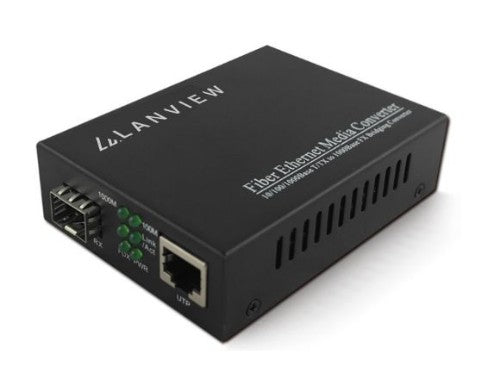

1-Port 10/100/1000X SFP to 1-Port 10/100/1000T 802.3x Media Converter
Traditionally, it uses fiber as the transmission medium.
It is compatible with 850nm multi-mode, 1310nm single-mode, and WDM fiber cables with an LC-Type connector, capable of transmitting data up to 0.55 kilometers or 100 kilometers.
The 1000M Ethernet standalone and module cards offer a straightforward solution for Ethernet conversion between copper wire and fiber media at speeds of 1000Mbps.
Key Features
- Connection between fiber to copper 1Gbps Ethernet
- equipment function as fiber-to-copper media converter
- for long distance transmission
- Media converter for network backbone(SAN, LAN, MAN)
- Providing additional network management options
- Providing protections against lighting and static electricity
- for Ethernet network and the network main
Description

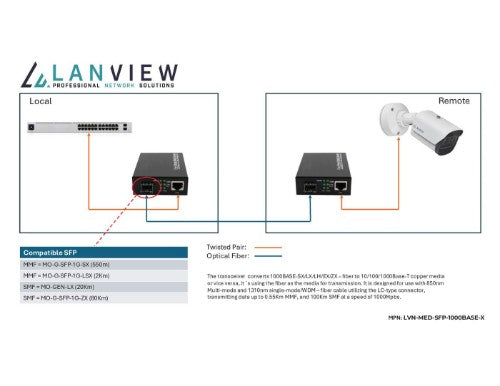

The Transceiver is designed to convert 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa.Traditionally, it uses fiber as the transmission medium.
It is compatible with 850nm multi-mode, 1310nm single-mode, and WDM fiber cables with an LC-Type connector, capable of transmitting data up to 0.55 kilometers or 100 kilometers.
The 1000M Ethernet standalone and module cards offer a straightforward solution for Ethernet conversion between copper wire and fiber media at speeds of 1000Mbps.
Specifications
