Description
(16) 2.5/3.5" HDD / SSD support, (2) 10G SFP+, (1) 10 GbE, 481.4 x 480 x 132 mm
Description
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.Specifications
| Performance | |
|---|---|
| Built-in processor | Yes |
| Internal memory | 32000 MB |
| Ethernet LAN data rates | 10000 Mbit/s |
| Video recording modes | 1080p, 2160p, 4320p |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 16 |
| HDD size | 2.5/3.5" |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Storage | |
| Number of HDDs supported | 16 |
| HDD size | 2.5/3.5" |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Solid state drive | |
| Number of SSDs installed | 0 |
| SSD capacity | 0 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10000 Mbit/s |
| Fiber ports quantity | 2 |
| Features | |

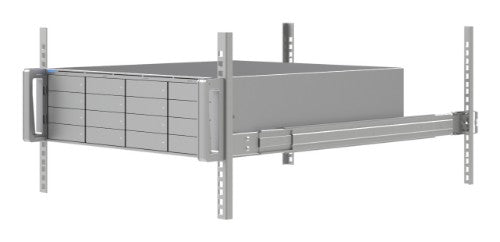

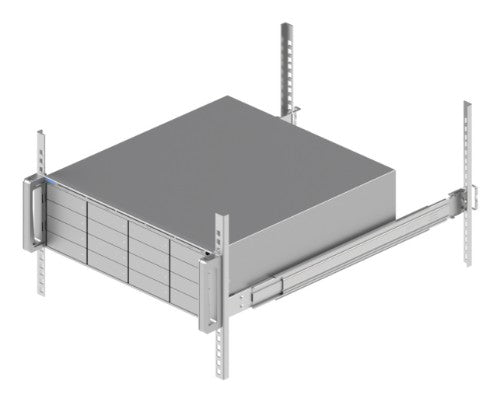

| Rack mounting | Yes |
| LED indicators | Yes |
| Rack capacity | 3U |
| Product colour | Grey |
| Processor | |
| Built-in processor | Yes |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 410 W |
| Power supply | 550 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 481.4 mm |
| Depth | 480 mm |
| Height | 132 mm |
| Weight | 16.6 kg |
