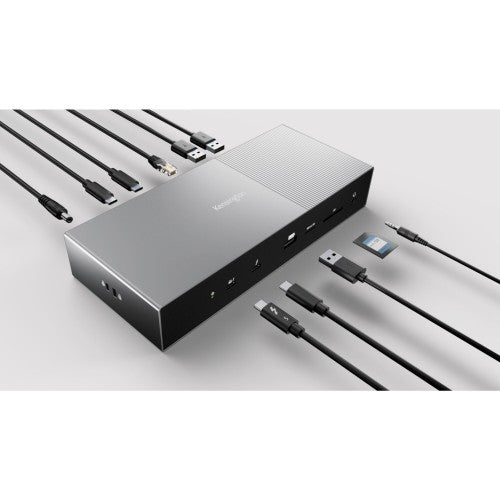

SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
Key Features
- Boost productivity with speeds up to 80Gbps, with Bandwidth Boost providing up to 120Gbps for video-intensive usage.
- Includes free Kensington DockWorks™ software to ensure the best connection, performance, and security from your Kensington dock.
- 3-Year limited warranty.
- For MacBook, the number of displays that can be connected through the dock is up to two external displays. For M4 Max chipsets, you can maximize the CPU's display capabilities by connecting additional monitors directly to the MacBook, separate from the dock connection.
- The SD5000T5 dock supports up to three video streams via a single upstream connection; however, the actual number of displays supported depends on the OEM laptop configuration. Contact your laptop manufacturer to confirm the Thunderbolt™ 5 port's display capabilities.
- *This dock supports the 2.5 Gigabit Ethernet standard which provides a maximum data rate of 2.5 Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
- Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
- Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz.
- Delivers up to 140W Power Delivery to meet the demands of high-power workstations.
- Productive 11-in-1 design provides increased efficiency and seamless connectivity to various setups.
- Built-in SD and Micro SD card readers provide ultra-fast file transfer options.
- Plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
- Zero-Footprint Mounting option to support a tidier workspace.
- Offers security cable lock slots to support device protection.
Reasons To Buy
Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Triple 4K or Dual 8K Support
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.
Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.
Productive 11-in-1 Design

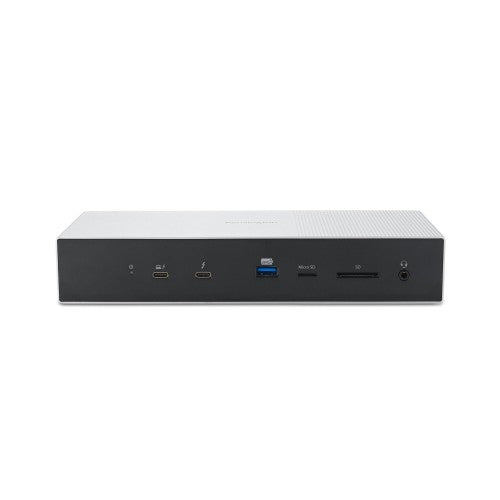

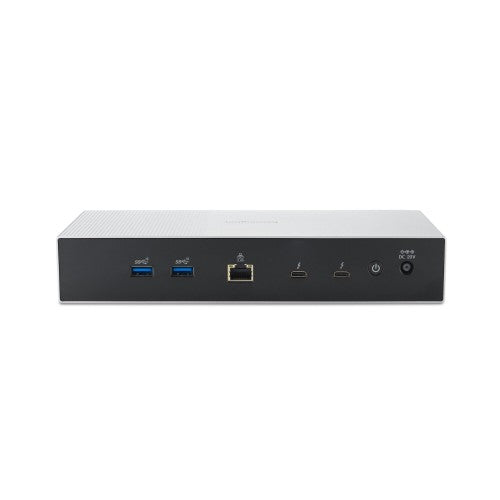

3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

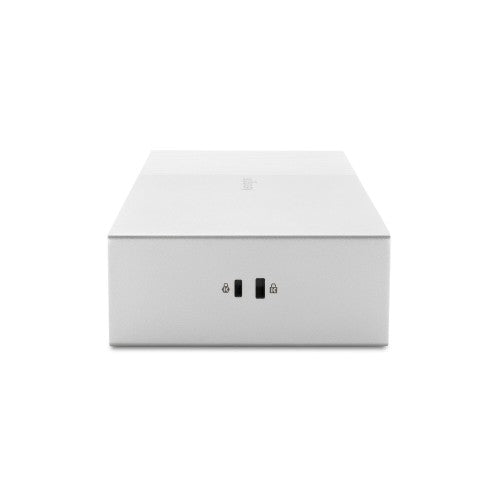

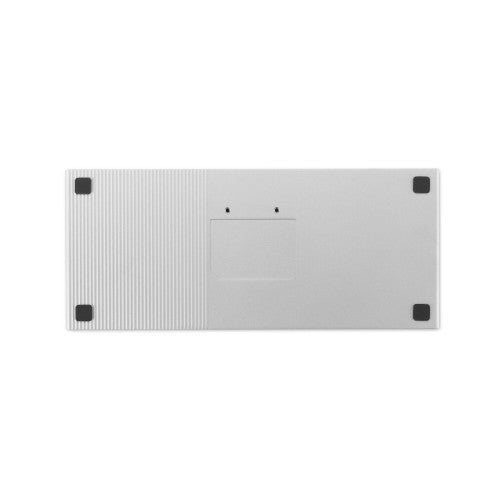

Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Free DockWorks™ software delivers the best connection, performance, and security from your Kensington dock. Enjoy peace of mind knowing your covered by Kensington with a professional warranty.
Description
The SD5000T5 EQ Thunderbolt™ 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorks™ Software and is supported by a 3-year limited warranty. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Headphone connectivity |
3.5 mm |
| Host interface |
Thunderbolt 5 |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
0 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
140 W |
| Thunderbolt 5 ports quantity |
3 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
3 |
| Country of origin |
China |
| Product colour |
Black, Grey |
| Card reader integrated |
Yes |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| LED indicators |
Power |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Cable lock slot type |
Kensington, Nano |
| HD type |
8K Ultra HD |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Maximum refresh rate |
540 Hz |
| Technical details |
|---|
| Product colour |
Black, Grey |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Products per master (outer) case |
6 pc(s) |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
9 A |
| Software |
|---|
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 15.0 Sequoia |
| Indication |
|---|
| LED indicators |
Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating relative humidity (H-H) |
0 - 55% |
| Weight & dimensions |
|---|
| Weight |
975 g |
| Width |
226 mm |
| Depth |
97 mm |
| Height |
40 mm |
| Package weight |
1.9 kg |
| Package width |
264 mm |
| Package depth |
125 mm |
| Package height |
154 mm |
| Design |
|---|
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 15.0 Sequoia |
| Country of origin |
China |
| Product colour |
Black, Grey |
| Cable lock slot |
Yes |
| LED indicators |
Power |
| Cable lock slot type |
Kensington, Nano |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
1.9 kg |
| Package width |
264 mm |
| Package depth |
125 mm |
| Package height |
154 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Yes |
| Warranty card |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Other features |
|---|
| Minimum system requirements |
CPU: Intel Core HX series 13th /14th+ |
