130 W / 8 Ω, 260 W / 4 Ω, Class D, Wi-Fi 802.11 a/b/g/n/ac, 2x LAN, 100-240 VAC, 50/60 Hz, 17 W, 2.4 kg, White
Key Features
- Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
- 130 watts per channel at 8 ohms
- (2) speaker terminal outputs with (2) custom-designed banana plugs included
- (1) RCA analog subwoofer output
- (2) RCA analog inputs for left and right channels
- (1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos

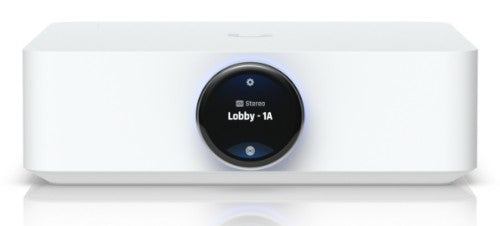

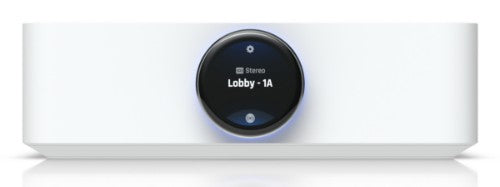

- 1.43" rotary knob with touchscreen
- Effortless setup, management, and group control with the UniFi Play mobile app
Description
Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
Specifications
| Audio |
|---|
| Amplifier class |
D |
| Total Harmonic Distortion (THD) |
0.05% |
| RMS power output per channel (4 Ohm) |
260 W |
| RMS power output per channel (8 Ohm) |
130 W |
| Input impedance |
8 Ω |
| Audio decoders |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Ports & interfaces |
|---|
| Speakers connectivity type |
Banana connector |
| Line outputs (RCA) |
1 |
| Line inputs (RCA) |
2 |
| AC (power) in |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
2 |
| Technical details |
|---|
| Purpose |
Home |
| Product colour |
White |
| Connectivity technology |
Wired & Wireless |
| Quick start guide |
Yes |
| Material |
Plastic |
| Cables included |
AC |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| AirPlay |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Display |
|---|
| Built-in display |
Yes |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
17 W |
| Maximum current |
2.5 A |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Width |
217 mm |
| Depth |
236.8 mm |
| Height |
63.7 mm |
| Weight |
2.4 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Indication |
|---|
| LED indicators |
Yes |
