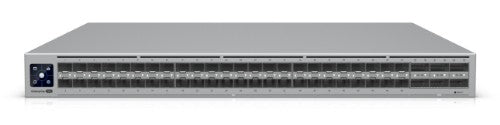

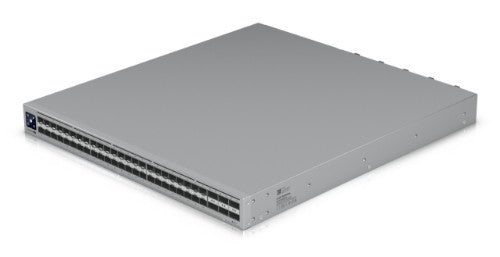

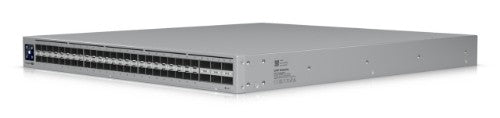

Enterprise Campus Aggregation, (6) 100/40G QSFP28 ports, (48) 25/10G SFP28 ports, 3.6 Tbps, 2.3 Bpps, 442.4 x 43.7 x 496 mm
Key Features
- (48) 25G SFP28 and (6) 100G QSFP28 ports
- Multi-Chassis Link Aggregation (MC-LAG) support
- Layer 3 automatic failover (VRRP) support
- BGP Dynamic Routing

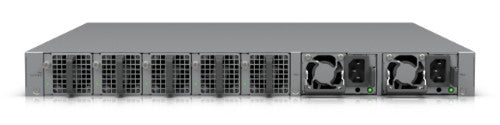

- (2) included hot-swappable power modules, with 1+1 redundancy
- (5) included hot-swappable fan modules, with 4+1 redundancy
Description
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Multicast support |
Yes |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
No |
| QSFP28 ports quantity |
6 |
| SFP28 ports quantity |
48 |
| Network |
|---|
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Switching capacity |
3600 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
2300 Mpps |
| Throughput |
1800 Gbit/s |
| Security |
|---|
| Loop protection |
Yes |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP guarding, DHCP relay, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| LED indicators |
Yes |

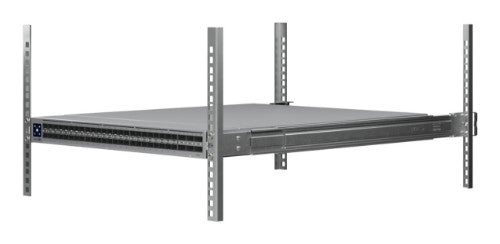

| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
340 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
2 |
| Power source |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
496 mm |
| Height |
43.7 mm |
| Weight |
9.9 kg |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
