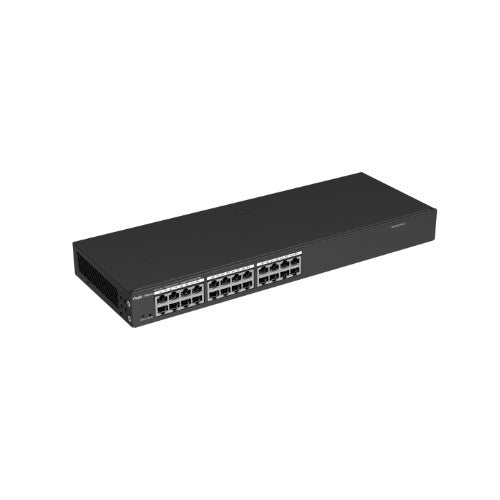

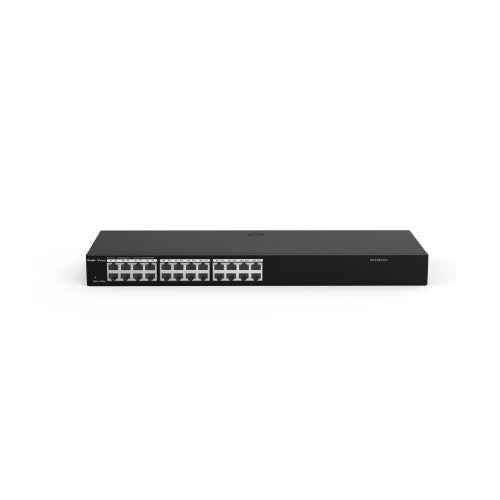

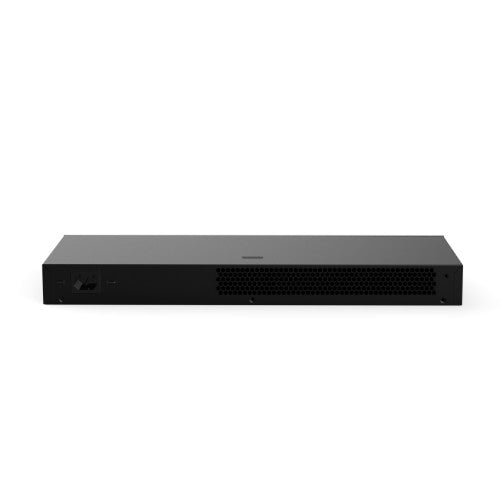

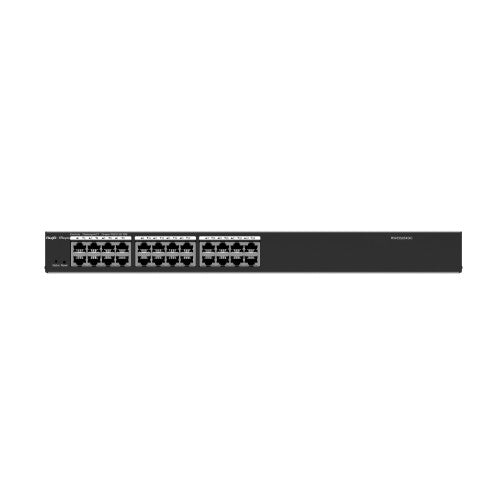

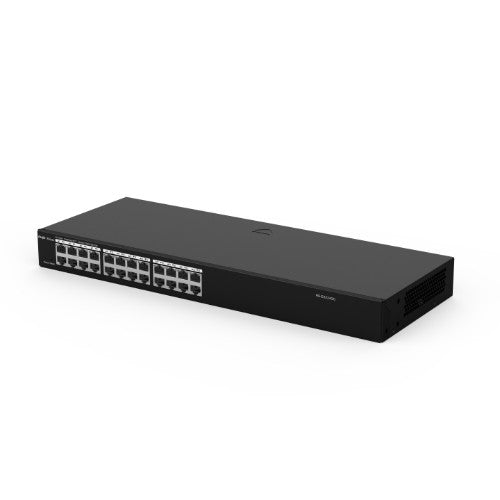

Ruijie Networks RG-ES224GC-V2, Managed, Gigabit Ethernet (10/100/1000), Rack mounting
Description
Ruijie Networks RG-ES224GC-V2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Rack mounting
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
16 |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Jumbo frames |
9216 |
| MAC address table |
8000 entries |
| Switching capacity |
48 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
35.71 Mpps |
| Number of VLANs |
16 |
| Security |
|---|
| DHCP features |
DHCP client, DHCP snooping |
| Design |
|---|
| Reset button |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
200000 h |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
0.6 A |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating altitude |
-500 - 5000 m |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
16 |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
165 mm |
| Height |
44 mm |
| Weight |
2.8 kg |
| Technical details |
|---|
| Product colour |
Black |
| Mean time between failures (MTBF) |
200000 h |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
