HX Desk Monitor Arm with VHD Pivot (black) for 1000R 57" Monitors
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
Key Features
- Protect your investment
- Combines a strong monitor arm and very heavy-duty pivot for secure support
- Immersive viewing
- Tilts +20/-5° to work or play comfortably
- G9 compatible

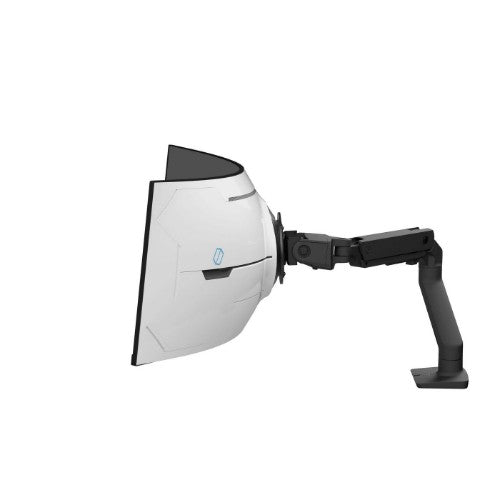

- Designed for 57″ 1000R curved monitors like the Samsung 57″ Odyssey G9
- Neat look
- Cables stay hidden under the arm and through the extension
- Reclaim space
- Replaces bulky monitor bases and lifts screens above the desktop
- Simple adjustment
- Enables precise screen positioning with Constant Force™ Technology
Description
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57″ Odyssey G9 Gaming Monitor.note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 17 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 6.6 cm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum weight capacity | 17 kg |
| Maximum screen size | 144.8 cm (57") |

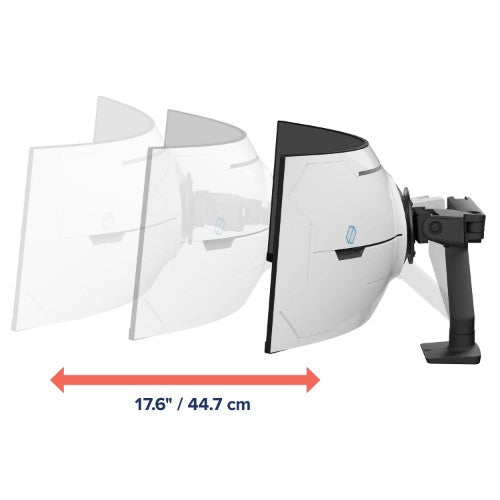

| Extension arm (max) | 44.7 cm |
| Suitable for TV | Yes |
| Maximum weight capacity (per curved/ultra-wide display) | 17 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Height adjustment | Yes |

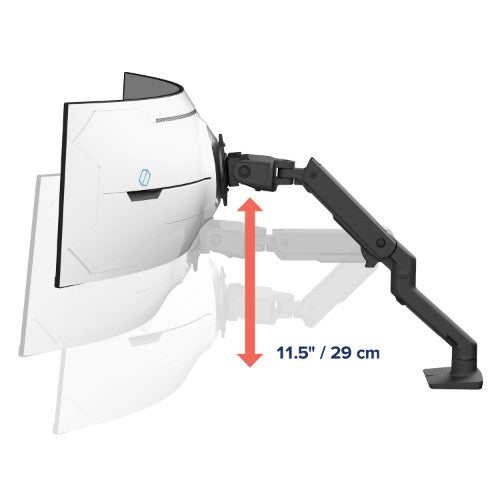

| Height adjustment range | 0 - 292 mm |
| Tilt angle range | 5 - 20° |
| Angle of rotation | 20° |
| Pan range | 0 - 180° |
| Number of arms | 1 |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Easy to install | Yes |
| Product colour | Black |
| Orientation | Landscape |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Warranty period | 10 year(s) |
| Packaging content | |
| Clamp included | Yes |
| Manual | Yes |
| VESA mount included | Yes |

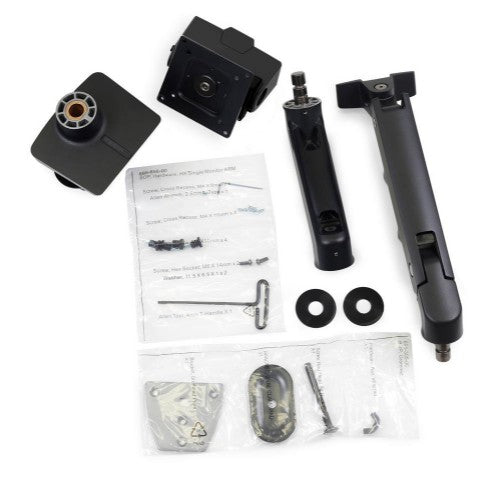

| Packaging content | HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware |
| Mounting kit | Yes |
| Other features | |
| Warranty period | 10 year(s) |
| Mounting type | Desk |
| Mounting | Clamp |
| Country of origin | China |
| Packaging data | |
| Clamp included | Yes |
| Manual | Yes |
| Logistics data | |
| Country of origin | China |
