100W, 2x 2.5G GbE RJ45, IPX5 Weatherproof, pole/wall, UV-stabilized polycarbonate
Key Features

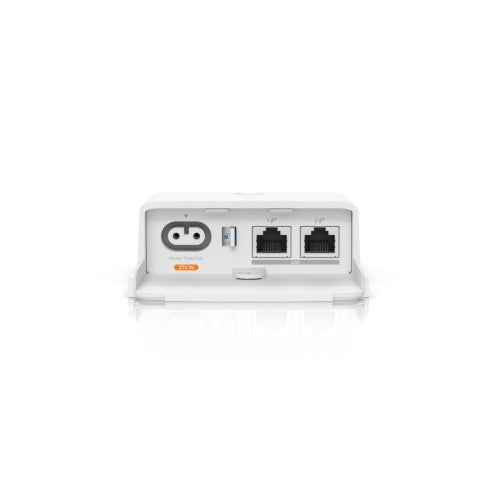

- (2) 2.5G GbE RJ45 ports with 48V passive PoE
- Weatherproof enclosure

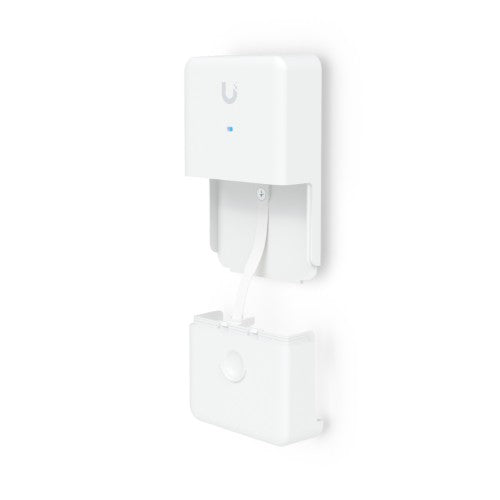

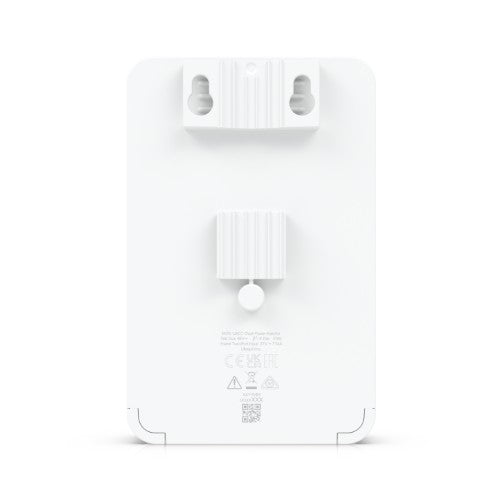

- Pole or wall-mountable (kit included)
- Supports all Wave models
Description
Versatile PoE adapter that delivers up to 100W to power any two Wave models and provides 2.5 GbE connectivity.
Specifications
| Network |
|---|
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Power over Ethernet (PoE) voltage |
48 V |
| Features |
|---|
| Wall mountable |
Yes |
| Product colour |
White |
| LED indicators |
Status |
| Housing material |
Polycarbonate (PC) |
| International Protection (IP) code |
IPX5 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Output power |
100 W |
| Total Power over Ethernet (PoE) budget |
100 W |
| Power over Ethernet (PoE) voltage |
48 V |
| Input voltage |
27 V |
| Input current |
4.44 A |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
280 g |
| Width |
95.5 mm |
| Depth |
44 mm |
| Height |
145.5 mm |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
27 V |
| Input current |
4.44 A |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication |
|---|
| LED indicators |
Status |
