SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology
Key Features
- Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
- Optimised for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
- Composed of 100% post-consumer recycled (PCR) aluminium* and delivered in FSC® certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
- Combines Thunderbolt™ with DisplayLink® to provide next-level productivity experiences, including up to 40Gbps of data, video and audio, daisy chain support, together with Intel VT-d DMA protection.
- Up to 100W Charging (96W certified) to power your laptop and connected accessories.
- Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups.
- Zero-footprint mounting option support a tidier workspace.
- Security cable lock slots support device protection.
- 3-Year limited warranty.
Reasons To Buy
Quad 4K Video Output
Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. Provides flexible video connections (HDMI®, DP and TB4) without the need for cumbersome adapters. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Universal Compatibility
A quick and powerful solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
Recycled Materials
The SD5920T is composed of 100% post-consumer recycled (PCR) aluminium* and is delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
Thunderbolt™ 4 Hybrid Technology
Transfers up to 40Gbps of data, video , and audio. Provides daisy chain support for SSDs, monitors , and other Thunderbolt™ devices. Blocks peripheral devices from unauthorised access to system memory using Intel VT-d DMA protection.
Up to 100W Charging (96W certified)
Charges any Thunderbolt™ 4, Thunderbolt™ 3, USB4® or USB-C® laptop, while also providing power to any connected USB-C® or USB4® accessories, including phones, tablets and watches. Includes KonstantCharge™, enabling connected devices to charge even when your host device is undocked.
Productive 16-in-1 Design

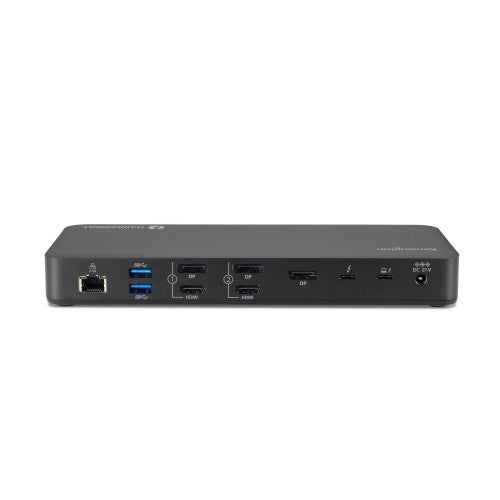

16 ports deliver expanded connectivity options. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader and 1 x 2.5Gbps Ethernet.
Security Cable Lock Slots
Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
3-Year Limited Warranty
Enjoy peace of mind knowing you are covered by Kensington with a professional warranty.
Description
Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes security cable lock slots and 3-year limited warranty. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Headphone connectivity |
3.5 mm |
| Host interface |
Thunderbolt 4 |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
3 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
96 W |
| Thunderbolt 4 ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
4 |
| On/off switch |
Yes |
| Country of origin |
Vietnam |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Data transfer rate |
40 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Cable lock slot type |
Kensington, Nano |
| HD type |
8K Ultra HD |
| Housing material |
Aluminium, Plastic |
| Technical details |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
40 Gbit/s |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Products per shipping (inner) case |
6 pc(s) |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Power source type |
DC |
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Output voltage |
21 V |
| Output current |
7.1 A |
| Software |
|---|
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Other operating systems supported |
ChromeOS |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating relative humidity (H-H) |
0 - 55% |
| Weight & dimensions |
|---|
| Weight |
600 g |
| Width |
2250 mm |
| Depth |
85 mm |
| Height |
22 mm |
| Package weight |
1.19 kg |
| Package width |
242 mm |
| Package depth |
108 mm |
| Package height |
100 mm |
| Design |
|---|
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Country of origin |
Vietnam |
| Product colour |
Black |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington, Nano |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
1.19 kg |
| Package width |
242 mm |
| Package depth |
108 mm |
| Package height |
100 mm |

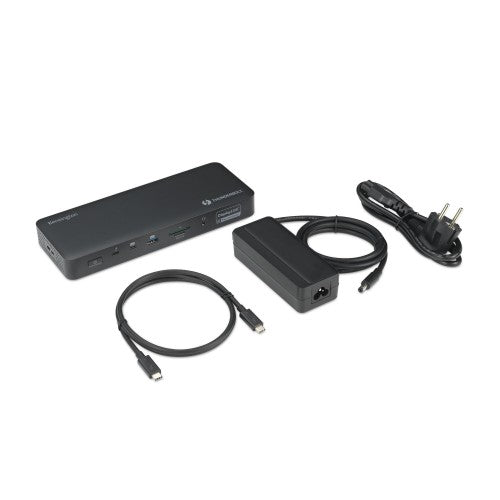

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per shipping (inner) case |
6 pc(s) |
