Description
10'', HD, LCD, 1920 x 1200, 1080p, 4K, 100-240 V, 50-60 Hz, RJ‑45, HDMI 2.1, 1.8 m, Bluetooth 5.2, WI-FI 6, 1000 Mbit/s, Black, 245 x 119 x 134 mm, 1.105 kg
The UC-B70-A-Z-I conferencing solution delivers a hassle-free setup and installation, better space utilization, a cleaner and visually appealing environment, easy collaboration and content sharing, and scalable deployment.
High‑Definition Video Conferencing with Impressive Audio

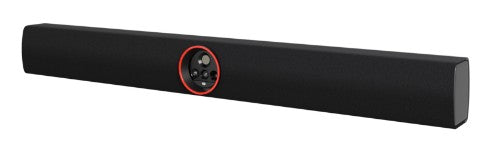

The powerful and elegant all-in-one (AIO) Crestron Videobar 70 provides a convenient and compact conferencing solution for medium to large-sized meeting rooms. It comprises:
- A quad-camera setup that captures the full room in 4K, automatically tracks and frames the presenter or everyone in the room based on its configuration, and enhances the video content using AI.
- 10-watt dual speakers produce full, rich, and natural-sounding audio. Additional digital signal processing with AEC and noise reduction assures optimal sound quality for an immersive experience.
- Integrated 24-microphone array to capture voices throughout the room using adaptive beamforming technology. AI noise cancellation is also provided to ensure crystal-clear communication with exceptional audio fidelity and pickup.
- Android™ OS running on the QCS8250 chipset that ensures a smooth and reliable conferencing experience every time.
Native Zoom Rooms® Software Experience
The UC-B70-A-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Android OS-Based Conferencing System
As an Android OS‑based conferencing system, the UC-B70-A-Z-I provides a consistent, secure Zoom Rooms® experience. The system's tabletop controller and Videobar 70 both run on Android OS to ensure compliance with enterprise requirements.
Intuitive User Interface
With a large 10 in. (254 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The AIO Crestron Videobar 70 comes with one ready-to-mount wall bracket allowing the video bar to install cleanly beneath the display – connect the displays and touch screen and mount. The videobar can be installed behind a VESA® compliant display using the optional UC-SB2-DMK display mounting kit. The videobar can also be installed onto a table or similar surface using the optional UC-SB2-TTK tabletop mounting kit. Both mounting kits are sold separately.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to Crestron Videobar 70. System updates are controlled by Crestron Auto update, XiO Cloud service, and Zoom Device Manager (ZDM).
Premium‑Level Support
Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Key Features
- Front‑of‑room video conferencing solution for Zoom Rooms® software
- Intelligent high-definition video, immersive high-quality audio, built-in digital signal processer, and Zoom rooms conferencing software, all in one Android™ OS-based Crestron Videobar 70 enclosure
- Native Zoom Rooms® Controller touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a 10 in. tabletop touch screen, all-in-one Crestron Videobar 70 with tilting wall bracket, and a PoE injector
- Easy to deploy and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
Description

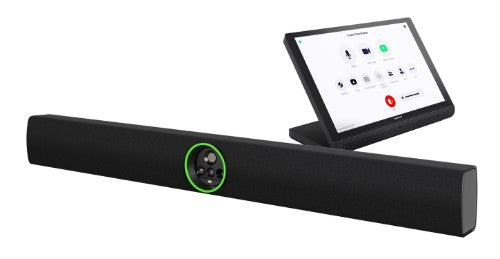

The UC-B70-A-Z-I Crestron Flex tabletop conferencing system provides a medium to large room video conference solution for use with Zoom Rooms® software. It simplifies the communications and collaboration needs with fewer components and maximum efficiency. The UC-B70-A-Z-I features a 10 in. tabletop touch screen, Crestron Videobar 70 with intelligent high-definition video and audio, a PoE injector, and cables. The UC-B70-A-Z-I also supports up to two video displays1 (not included).The UC-B70-A-Z-I conferencing solution delivers a hassle-free setup and installation, better space utilization, a cleaner and visually appealing environment, easy collaboration and content sharing, and scalable deployment.
High‑Definition Video Conferencing with Impressive Audio
The powerful and elegant all-in-one (AIO) Crestron Videobar 70 provides a convenient and compact conferencing solution for medium to large-sized meeting rooms. It comprises:
- A quad-camera setup that captures the full room in 4K, automatically tracks and frames the presenter or everyone in the room based on its configuration, and enhances the video content using AI.
- 10-watt dual speakers produce full, rich, and natural-sounding audio. Additional digital signal processing with AEC and noise reduction assures optimal sound quality for an immersive experience.
- Integrated 24-microphone array to capture voices throughout the room using adaptive beamforming technology. AI noise cancellation is also provided to ensure crystal-clear communication with exceptional audio fidelity and pickup.
- Android™ OS running on the QCS8250 chipset that ensures a smooth and reliable conferencing experience every time.
Native Zoom Rooms® Software Experience
The UC-B70-A-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Android OS-Based Conferencing System
As an Android OS‑based conferencing system, the UC-B70-A-Z-I provides a consistent, secure Zoom Rooms® experience. The system's tabletop controller and Videobar 70 both run on Android OS to ensure compliance with enterprise requirements.
Intuitive User Interface
With a large 10 in. (254 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The AIO Crestron Videobar 70 comes with one ready-to-mount wall bracket allowing the video bar to install cleanly beneath the display – connect the displays and touch screen and mount. The videobar can be installed behind a VESA® compliant display using the optional UC-SB2-DMK display mounting kit. The videobar can also be installed onto a table or similar surface using the optional UC-SB2-TTK tabletop mounting kit. Both mounting kits are sold separately.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to Crestron Videobar 70. System updates are controlled by Crestron Auto update, XiO Cloud service, and Zoom Device Manager (ZDM).
Premium‑Level Support
Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Specifications
| Performance | |
|---|---|
| Product type | Video collaboration bar |
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Technical details | |
| Product type | Video collaboration bar |
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Video | |
| HD type | 4K Ultra HD |
| Megapixel (approx.) | 20 MP |
| Digital zoom | 7.5x |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1200 pixels |
| Audio | |
| Speaker power | 10 W |
| Echo cancellation | Yes |
| Built-in speaker(s) | Yes |
| Audio beamforming | Yes |
| Memory | |
| Internal memory | 12 MB |
| Internal memory type | LPDDR5 |
| Total storage capacity | 128 GB |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| Microphone in | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Interface module | |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Security algorithms | HTTPS, SSL/TLS |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Camera | |
| Image sensor size | 1" |
| Horizontal field of view | 84.3° |
| Gain control type | Auto |
| Megapixel (approx.) | 20 MP |
| Digital zoom | 7.5x |
| Vertical field of view | 53.8° |
| Camera type | Triple camera |
| Camera privacy shutter | Yes |
| Zoom capability | Yes |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 25.4 cm (10") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Microphone | |
| Adjustable microphone volume | Yes |
| Number of microphone arrays | 24 |
| Security | |
| Security algorithms | HTTPS, SSL/TLS |
| Computer system | |
| Mobile operating systems supported | Android |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
| DC input voltage | 19 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source type | AC, DC |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 119 mm |
| Height | 134 mm |
| Weight | 1.1 kg |
| Packaging content | |
| PoE adapter included | Yes |
| Speaker included | Yes |
| Manual | Yes |
| Microphone included | Yes |
| Camera included | Yes |
| Cables included | 3.5 mm to USB Type-C, HDMI, LAN (RJ-45), USB Type-A, USB Type-C |
| HDMI cable length | 1.8 m |
| AC adapter included | Yes |
| Quick start guide | Yes |
