Description

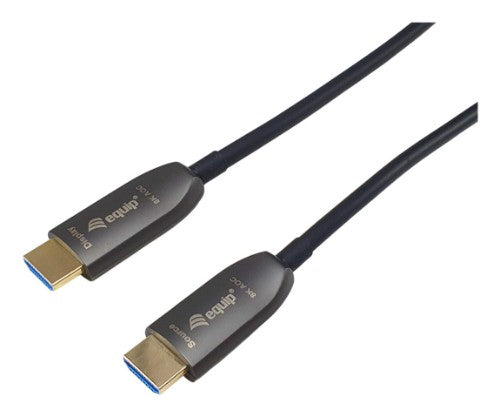

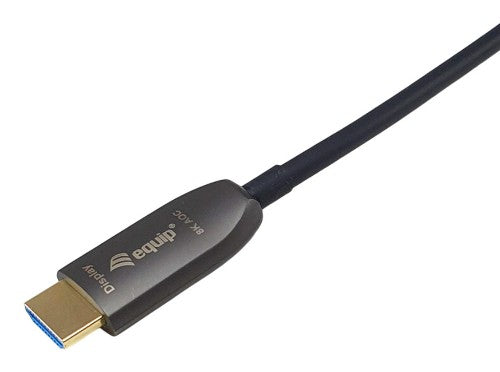

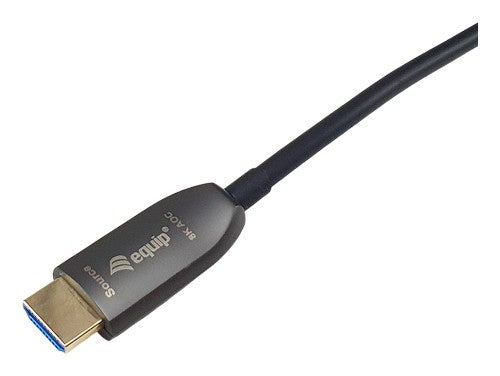

HDMI 2.1 Active Optic Armored Cable, 50m, 8K/60Hz, 4K/120Hz, 48Gbps
The armored design provides enhanced protection against physical damage, ensuring durability in various environments. Compatibility with the latest HDMI devices ensures that users can take full advantage of the capabilities offered by modern displays and audio equipment. Overall, HDMI 2.1 Active Optic Armored Cables are an excellent choice for anyone looking to future-proof their AV setup with reliable performance and high-quality transmissions.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Key Features
- HDMI Male to Male
- HDMI 2.1 compatible

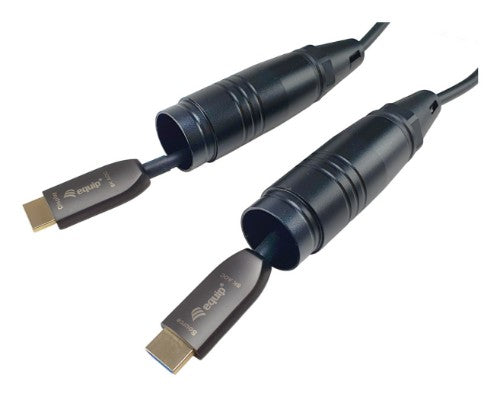

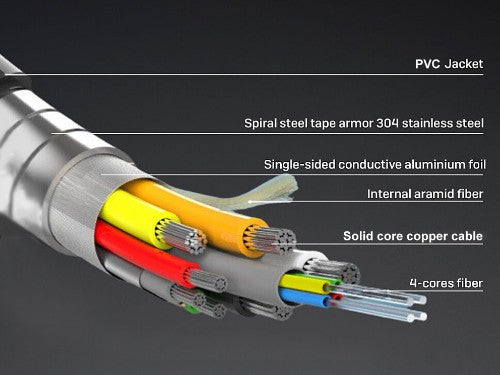

- Added Armored Steel-Spiral protection
- Supports HDMI Ethernet Channel (HEC)
- Supports video resolutions up to 8K/60Hz, 4K/120Hz
- Bandwidth up to 48Gbps
- Supports 3D display, HDCP2.2 and HDR / EDID
- Up to 1536 kHz audio sampling rate
- Dynamic HDR (HDR Dynamic Metadata)
- Enhanced Audio Return Channel (eARC)
- Variable Refresh Rate (VRR)
- Quick Media Switching (QMS)
- Quick Frame Transport (QFT)
- Auto Low Latency Mode (ALLM)
- Display Stream Compression (DSC)
- Zinc Alloy housing
- Gold Plated connectors for high transmission quality
- This AOC cable is single way transmissing, can only from Source to Display, please note the direction before using
Description
HDMI 2.1 Active Optic Armored Cables are specialized cables designed to support high-resolution video and audio signals at incredibly fast speeds. They utilize active optical technology, allowing them to transmit 8K video at 60Hz and 4K video at up to 120Hz over longer distances without signal degradation, making them ideal for high-quality home theater setups and professional AV applications.The armored design provides enhanced protection against physical damage, ensuring durability in various environments. Compatibility with the latest HDMI devices ensures that users can take full advantage of the capabilities offered by modern displays and audio equipment. Overall, HDMI 2.1 Active Optic Armored Cables are an excellent choice for anyone looking to future-proof their AV setup with reliable performance and high-quality transmissions.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 240 Hz |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Cable length | 50 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| HDMI version | 2.1 |
| Bandwidth | 48000 MB/s |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320 |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Connector housing material | Zinc |
| Cable type | Round cable |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 2 kg |
| Package weight | 2.2 kg |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 120 mm |
| Packaging data | |
| Package weight | 2.2 kg |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 120 mm |
| Technical details | |
| Country of origin | China |
| Compliance certificates | CE, RoHS |
| Other features | |
| Country of origin | China |
| Width | 49 mm |
| Height | 50000 mm |
| Depth | 19 mm |
| Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 380 mm |
| Customs product code (TARIC) | 8544421000 |
