Description

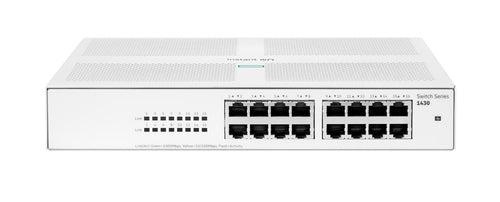

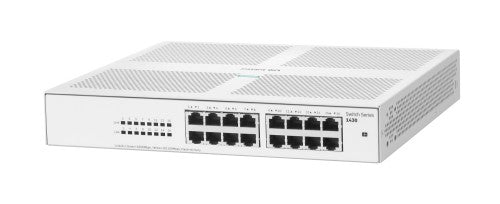

Networking Instant On Switch 16p Gigabit 1430
With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.
All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
What is new supporting point:
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Reasons To Buy
Unmanaged Ethernet Connectivity for Small Businesses
The HPE Networking Instant On Switch 1430 is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one 5-port, two 8-port, two 16-port, one 24-port, and one 26-port model with 2 SFP uplinks models.With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
Plug-and-Play Operation
The HPE Networking Instant On Switch 1430 models are easy to use with zero configuration and no required ongoing administration.The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.
Energy Efficiency and Traffic Optimization
The HPE Networking Instant On Switch 1430 series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Description
The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.What is new supporting point:
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 23.8 Mpps |
| Latency (10-100 Mbps) | 2.7 µs |
| Latency (1 Gbps) | 1.8 µs |
| Packet buffer memory | 2 MB |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 2 MB |

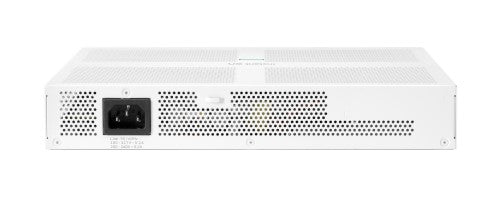

| Power | |
| Power consumption (max) | 7.9 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 1 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 258 mm |
| Depth | 275 mm |
| Height | 44 mm |
| Weight | 1.72 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
