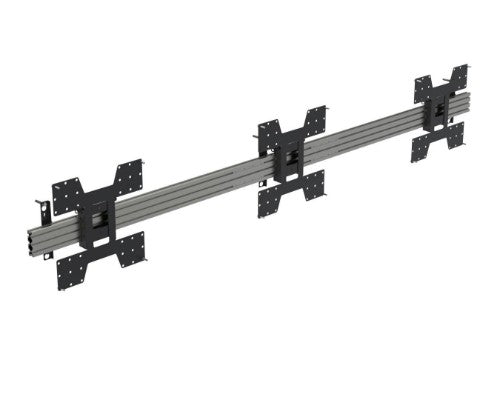

Menu board mount, with tilt, for 3 screens (landscape) up to 55" (max VESA 400)
Key Features
- Compatible with 3 screens up to 55” in landscape orientation
- Includes micro adjustment
- Easy hook-on mounting of screens
- Includes fixing to secure screens at the bottom
- Quick release - Optional
- Rail can be cut to size for smaller screens
- Tilt (°): 0-15° for <55" and 0-10° for 55" screens
Description
Our wall mounted Menu Board with tilt is designed for three screens (up to 55") in landscape orientation. It supports max of VESA 400 and features adjustable tilt for optimal viewing angles, capturing your customers attention.
Specifications
| Mounting |
|---|
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
150 kg |
| Panel mounting interface |
400 x 400 mm |
| Number of displays supported |
3 |
| Mounting type |
Wall |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Maximum screen size |
139.7 cm (55") |
| Ergonomics |
|---|
| Tilt angle range |
0 - 15° |
| Distance to the wall (min) |
0 mm |
| Cable management |
Yes |
| Design |
|---|
| Housing material |
Metal |
| Product colour |
Aluminium |
| Weight & dimensions |
|---|
| Width |
2680 mm |
| Depth |
80 mm |
| Height |
420 mm |
| Weight |
14.9 kg |
| Package width |
1195 mm |
| Package depth |
490 mm |
| Package height |
140 mm |
| Package weight |
15.6 kg |
| Packaging data |
|---|
| Package width |
1195 mm |
| Package depth |
490 mm |
| Package height |
140 mm |
| Package weight |
15.6 kg |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Number of displays supported |
3 |
| Mounting type |
Wall |
| Distance to the wall (min) |
0 mm |
| Products per pallet |
15 pc(s) |
| Pallet net width |
80 cm |
| Pallet net weight |
259.3 kg |
| Pallet net height |
162 cm |
| Pallet net length |
120 cm |
| Warranty period |
5 year(s) |
| Compliance certificates |
REACH |
| Version |
1.0 |
| Other features |
|---|
| Country of origin |
Denmark |
| Products per pallet |
15 pc(s) |
| Logistics data |
|---|
| Products per pallet |
15 pc(s) |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Pallet gross height |
162 cm |
| Harmonized System (HS) code |
8473308000 |
| Pallet gross weight |
259.3 kg |
