Description
25G independent gateway with multi-WAN load balancing, 12.5 Gbps IPS routing, and redundant hot-swap PSUs
Key Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.3.32 and later
- Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)*
- 12.5 Gbps routing with IDS/IPS
- License-free, real-time inspection of encrypted packets with NeXT AI Inspection** (SSL/TLS decryption)

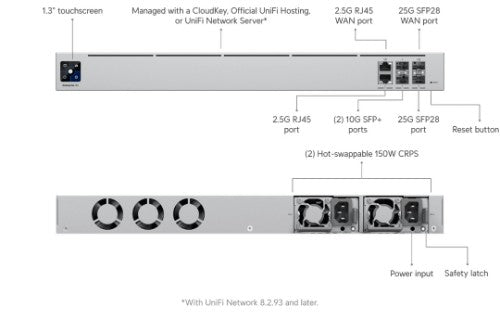

- (2) 25G SFP28,*** (2) 10G SFP+***, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)

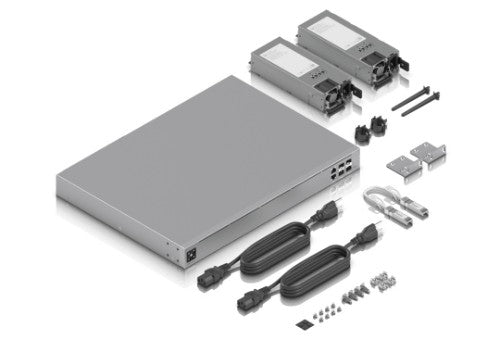

- (2) included hot-swap PSUs for power redundancy
- 1.3" touchscreen
Description
Specifications
| Design | |
|---|---|
| LED indicators | LAN |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Enclosure material | Aluminium/SGCC |
| Performance | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Internal memory | 16000 MB |
| Control display unit | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Enclosure material | Aluminium/SGCC |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 2500,10000,25000 Mbit/s |
| VPN support | Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ |
| Security | |
| VPN support | Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ |
| Firewall security | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP+ ports quantity | 2 |
| Management features | |
| Reset button | Yes |
| Power | |
| Power supply | 150 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 7 A |
| Power consumption (max) | 82 W |
| Weight & dimensions | |
| Weight | 6.5 kg |

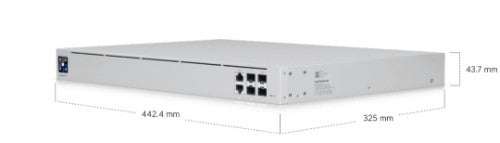

| Width | 442.4 mm |
| Height | 43.7 mm |
| Depth | 325 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | LAN |
| Memory | |
| Internal memory | 16000 MB |
| Display | |
| Control display unit | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Features | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
