Description

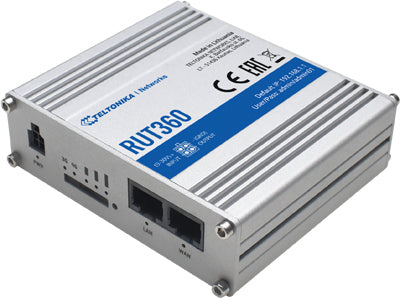

RUT360 LTE CAT 6 Router. With Quectel EG06-E (Europe the Middle East Africa Austalia Brazil) HW Modification: Standard Power Supply: UK PSU with 4-pin connector (12V 1.5A) Antenna: 2 x Mobile swivel SMA antenna 2 x WiFi swivel SMA antenna Accessorie
- RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.
- Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.
Description
- RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.- RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.
- Unique programming, remote monitoring, and security features make RUT360 perfect for IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.
Specifications
| Technical details | |
|---|---|
| Device type | Cellular network router |
| Data network | 3G, 4G |
| Ethernet LAN features | |
| Ethernet LAN (RJ-45) ports | 2 |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| DHCP client | Yes |
| IP routing | Yes |
| Cellular interface | |
| SIM interface | 1.8 V |
| Number of SIM cards | 1 |
| Network | |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| Design | |
| Housing material | Aluminium |
| Device type | Cellular network router |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | LAN, Speed, WLAN |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile network | |
| SIM interface | 1.8 V |
| Number of SIM cards | 1 |
| Data network | 3G, 4G |
| Short Message Service (SMS) | Yes |
| SIM card type | MiniSIM |
| SMS cell broadcast | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
| Port forwarding | Yes |
| IP address filtering | Yes |
| Firewall | Yes |
| URL filtering | Yes |
| VPN support | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| Material | |
| Housing material | Aluminium |
| Performance | |
| Web-based management | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor model | QCA9531 |
| Processor frequency | 0.65 GHz |
| RAM capacity | 0.128 GB |
| RAM type | LPDDR2 |
| Management features | |
| Web-based management | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Power | |
| Power consumption (typical) | 10.5 W |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 247 g |
| Width | 100 mm |
| Depth | 85 mm |
| Height | 30 mm |
