Description

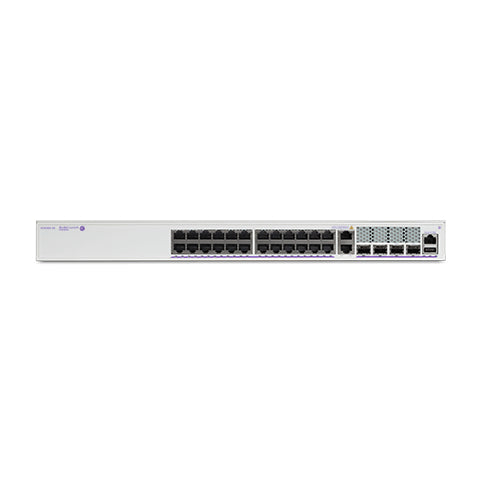

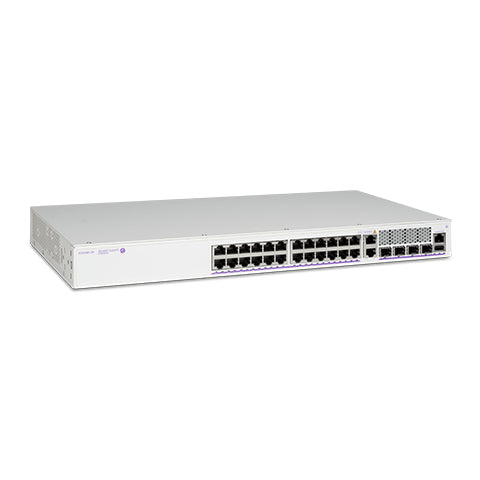

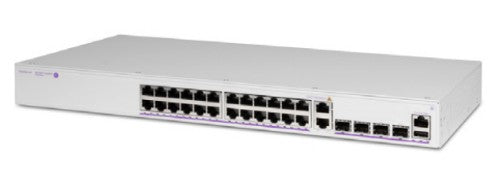

Alcatel-Lucent OmniSwitch 2360-P24X-UK - Stackable Gigabit Ethernet LAN Switch
The Alcatel-Lucent OmniSwitch 2360 Stackable Gigabit Ethernet LAN switch family delivers value and is optimised for small and medium businesses (SMB), as well as branch/campus workgroup solutions.
The enterprise-grade OmniSwitch 2360 family delivers high- performance, availability, security, and scalability. This family of switches provides a solid foundation to support business communications, applications, users and devices. Unified network management is employed for a consistent wired and wireless experience. The OmniSwitch 2360 family is embedded with the latest technology innovations and offers maximum investment protection.
Key Features
- 24 and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
- Gigabit Ethernet SFP uplink ports or 10 Gigabit Ethernet SFP+ uplink ports (X models)
- 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 216 ports
- Perpetual and fast PoE+ support across all PoE models
- Compact fan-less models for co-location work environments
Description
Fixed 1RU chassis 24 RJ 45 PoE 10/100/1G BaseT, 2 10G SFP+ uplink ports, 2 SFP(+) as 1G uplinks or 10G stacking ports, 370W power budgetThe Alcatel-Lucent OmniSwitch 2360 Stackable Gigabit Ethernet LAN switch family delivers value and is optimised for small and medium businesses (SMB), as well as branch/campus workgroup solutions.
The enterprise-grade OmniSwitch 2360 family delivers high- performance, availability, security, and scalability. This family of switches provides a solid foundation to support business communications, applications, users and devices. Unified network management is employed for a consistent wired and wireless experience. The OmniSwitch 2360 family is embedded with the latest technology innovations and offers maximum investment protection.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 68.5 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 92 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4000 |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 80 MHz |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Built-in processor | Yes |
| Fanless | Yes |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 95.5 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Tagged VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| Processor frequency | 80 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Manual | Yes |
