Description

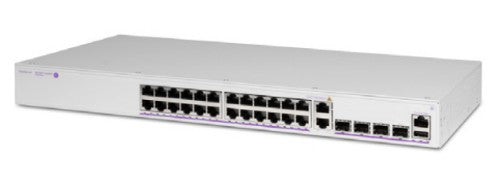

Alcatel-Lucent OmniSwitch 6360-PH24 - Stackable Gigabit Ethernet LAN Switch
The Alcatel-Lucent OmniSwitch® 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, accesspoint, IP telephony and critical Internet of Things (IoT) deployment.
OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an inbox web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.
The Alcatel-Lucent OmniSwitch 6360 family is embedded with the latest technology innovations, and offers maximum investment protection.
Deployments that benefit from the OmniSwitch 6360 family include:
• Classroom and campus workgroups
• Small enterprise or branch office enterprise
• Small-to-mid-sized and enterprise edge networks
Key Features
- 10, 24, and 48 Gigabit Ethernet data or PoE+ ports with line-rate performance
- Gigabit Ethernet SFP or SFP/RJ-45 combination uplink ports, or fixed 10 Gigabit Ethernet SFP+/RJ45 combination
- uplink ports (X models)
- 10 GigE virtual chassis bandwidth up to 8 units (stacking) or 416 ports
- Perpetual and fast PoE+ support across all PoE models
- Compact fanless models for co-location work environments
- Cloud enabled with Alcatel-Lucent OmniVista Cirrus for secure, resilient, and scalable cloud based network management
- Flexible device and user authentication with Alcatel-Lucent Access Guardian 2.0 (IEEE 802.1x/MAC/captive portal/UNP/ BYOD/IoT)
- Two multi-gigabit (10/100/1G/2.5) RJ-45 HPoE (95W IEEE802.3bt) user interfaces (-P48X)
- IEEE 802.3af, IEEE 802.3at and IEEE802.3bt (-P48X) PoE support for IP phones, wireless LAN (WLAN) access points, PTZ video cameras and IoT devices
Description
Fixed 1RU chassis 24 RJ-45 PoE 10/100/1G BaseT, 2 1G* RJ45/SFP combo, 2 SFP+ (1G/10G) uplink or VFL ports. 380W power budget. *10G license upgradeable.The Alcatel-Lucent OmniSwitch® 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, accesspoint, IP telephony and critical Internet of Things (IoT) deployment.
OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an inbox web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.
The Alcatel-Lucent OmniSwitch 6360 family is embedded with the latest technology innovations, and offers maximum investment protection.
Deployments that benefit from the OmniSwitch 6360 family include:
• Classroom and campus workgroups
• Small enterprise or branch office enterprise
• Small-to-mid-sized and enterprise edge networks
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 68.5 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 92 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4000 |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Built-in processor | Yes |
| Fanless | Yes |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power plug type | Type G |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 95.5 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Tagged VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Stainless steel |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 1024 MB |
| Flash memory | 1000 MB |
| Indication | |
| LED indicators | Yes |
