Description

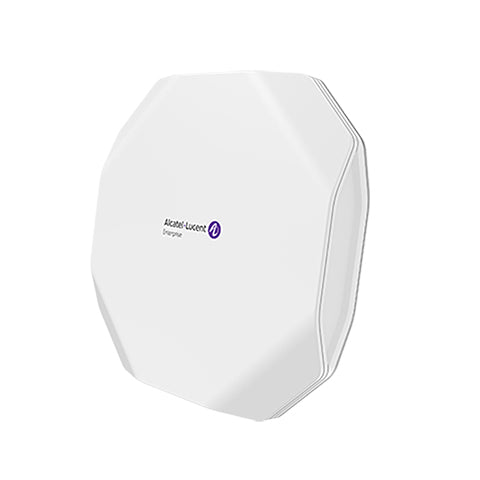

OmniAccess Stellar AP1411 WLAN Access Points - Indoor Wi-Fi 6E
The Wi-Fi 6E premium OmniAccess Stellar AP1411 is designed to accommodate the dense and high capacity needs of next generation mobility and IoT-enabled networks. The access point is powered with dual configurable built-in radios serving Wi-Fi clients, and an integrated Bluetooth/Zigbee radio enabling the growing needs of enterprise IoT connectivity powering location and building automation services. The OmniAccess Stellar AP1411 series supports a maximum aggregate data rate of 3.6Gbps (Mode1: 574Mbps in 2.4GHz + 1.2Gbps in 5GHz, Mode2: 574Mbps in 2.4GHz + 2.4Gbps in 6GHz, Mode3: 1.2Gbps in 5GHz + 2.4Gbps in 6GHz). The access point provides 1x 2.5GE and 1x 1GE uplinks, and the 2.5GE port provides Power over Ethernet (POE) input.
The OmniAccess Stellar AP1411 supports 802.11ax features, which include OFDMA, DL MU-MIMO, UL MU-MIMO, 1024-QAM modulation and more, making diverse digital workspaces highly reliable and efficient.
The OmniAccess Stellar AP1411 features enhanced WLAN technology with RF Radio Dynamic Adjustment, a distributed control Wi-Fi architecture, secure network admission control with Unified Access, built-in application intelligence and analytics, this makes it ideal for enterprises of all sizes that demand a simple, secure and scalable wireless solution.
Key Features
- The access point supports 802.11ax features, which include OFDMA, DL MU-MIMO, UL MU-MIMO, 1024-QAM modulation, TWT and more, making tomorrow’s diverse digital workspaces highly reliable and efficient
- Provides enhanced security with WPA3
- Cloud-enabled with Alcatel-Lucent OmniVista Cirrus Network Management as a Service
- On premises deployment with Alcatel-Lucent OmniVista 2500 Network Management System
- Can operate in a cluster architecture to provide simplified plug-and-play deployment for up to 255 APs
- Supports finely-tuned, Quality of Service (QoS) parameters to differentiate and provide appropriate QoS for each application such as voice, video and desktop sharing
- Robotic Desktop Automation (RDA) technology automatically assigns channels (DFS) and power settings (TPC) and ensures that access points stay clear of all radio frequency interference (RFI) sources to deliver reliable, high-performance WLAN
Description
The Alcatel-Lucent OmniAccess® Stellar AP1411 premium Wi-Fi 6E access point provides high-efficiency, high performance 802.11ax aggregate data rates up to 3.6Gbps across the 5/6GHz, and 2.4 GHz band. Wi-Fi 6E technology supports higher client density, delivers more capacity for bandwidth-hungry and latency-sensitive applications and provides a dependable secure network for Internet of Things (IoT) devices while improving their battery powered lifespan. The OmniAccess Stellar WLAN portfolio brings unparalleled experience for connectivity, coverage and performance for the modern IoT connected enterprise.The Wi-Fi 6E premium OmniAccess Stellar AP1411 is designed to accommodate the dense and high capacity needs of next generation mobility and IoT-enabled networks. The access point is powered with dual configurable built-in radios serving Wi-Fi clients, and an integrated Bluetooth/Zigbee radio enabling the growing needs of enterprise IoT connectivity powering location and building automation services. The OmniAccess Stellar AP1411 series supports a maximum aggregate data rate of 3.6Gbps (Mode1: 574Mbps in 2.4GHz + 1.2Gbps in 5GHz, Mode2: 574Mbps in 2.4GHz + 2.4Gbps in 6GHz, Mode3: 1.2Gbps in 5GHz + 2.4Gbps in 6GHz). The access point provides 1x 2.5GE and 1x 1GE uplinks, and the 2.5GE port provides Power over Ethernet (POE) input.
The OmniAccess Stellar AP1411 supports 802.11ax features, which include OFDMA, DL MU-MIMO, UL MU-MIMO, 1024-QAM modulation and more, making diverse digital workspaces highly reliable and efficient.
The OmniAccess Stellar AP1411 features enhanced WLAN technology with RF Radio Dynamic Adjustment, a distributed control Wi-Fi architecture, secure network admission control with Unified Access, built-in application intelligence and analytics, this makes it ideal for enterprises of all sizes that demand a simple, secure and scalable wireless solution.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 574 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q |
| Maximum data transfer rate | 574 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q |
| Maximum data transfer rate | 574 Mbit/s |
| Bluetooth | Yes |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Virtual LAN features | Tagged VLAN |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Security | |
| Security algorithms | WPA2, WPA3, WPA3-SAE |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | Light grey, White |
| Antenna | |
| Antenna type | Internal |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 210 mm |
| Weight | 1.02 kg |
| Height | 40 mm |
| Package width | 238 mm |
| Package depth | 237 mm |
| Package height | 69 mm |
| Package weight | 1.27 kg |
| Packaging data | |
| Package width | 238 mm |
| Package depth | 237 mm |
| Package height | 69 mm |
| Package weight | 1.27 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
