Description
Universal 6x 4K/60Hz Display Docking Station + Power Delivery 140W
The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.
- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz

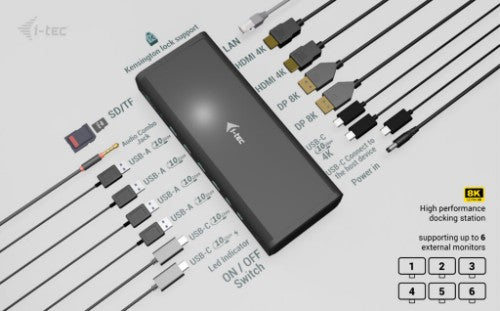

- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)
- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)
Key Features
- The ultimate performance docking station, allowing up to six monitors to be connected simultaneously
- Dock is compatible with almost any current laptop (connects via USB-A, USB-C, USB4 or Thunderbolt™ 3/4 ports)
- Support for the highest possible resolution: two monitors can run at up to 8K resolution, or six monitors can run at up to 4K/60 Hz
- The dock has a USB-C power port with up to 30W of power, for charging tablets and powerful smartphones

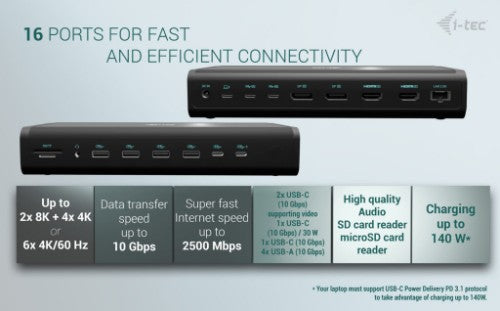

- There are 8 USB ports, including two USB-C Gen2 (10 Gbps) supporting video, two USB-C (10 Gbps) and four USB-A (10 Gbps)
- Super-fast LAN port supports up to 2.5 Gbps (10/100/1000/2500 Mbps)
- The combined 3.5mm audio/mic port can connect, for example, integrated headphones with microphone
- The docking station supports power for a connected laptop or tablet up to 140W (if it supports a USB-C PD 3.1 protocol)
- The docking station is compatible for vertical mounting behind a monitor with VESA mounting support
Description
The ultimate performance docking station. Supports up to six external monitors* at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals.The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.
- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz
- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)
- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.
** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 6 |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power consumption (max) | 240 W |
| Compatible power plug types | UK |
| Output voltage | 24 V |
| Output current | 10 A |
| USB cable length | 1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 546 g |
| Width | 218 mm |
| Depth | 88 mm |
| Height | 37 mm |
| Package width | 270 mm |
| Package depth | 181 mm |
| Package height | 90 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 181 mm |
| Package height | 90 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB Type-A to USB Type-C, USB Type-C |
| AC adapter included | Yes |
