Description
patchbox.one / 30RU / OS2 / LC-SC

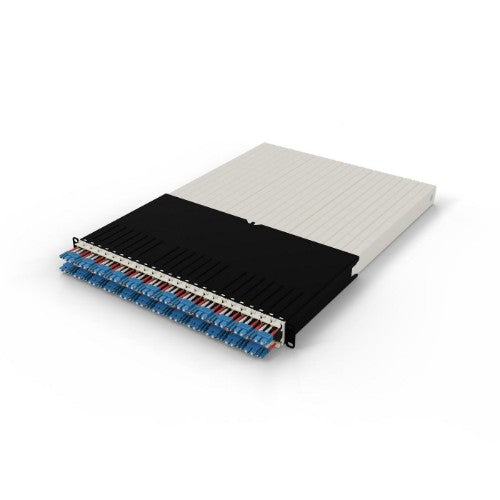

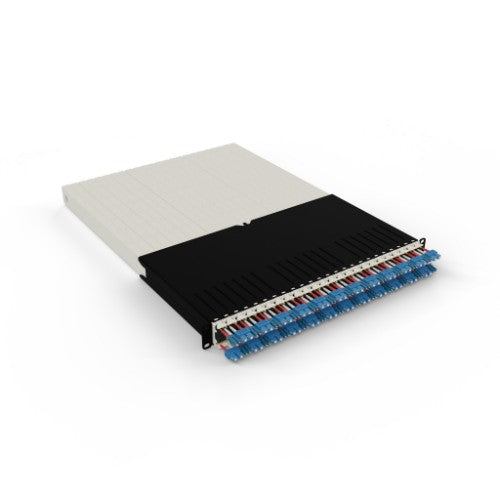

The patchbox.one with Fiber Optic cables is the ideal solution for a clean, efficient, and future-ready network rack. Equipped with ultra-flexible, retractable cables made from Corning® ClearCurve® Fiber, it delivers high performance while staying perfectly organized—no excess length, no mess.
High-Speed, High-Flexibility
Equipped with high-performing 1.8m fiber cables the patchbox.one offers seamless performance for enterprise network environments.
Fiber That Goes Further
We use bend-insensitive Corning® ClearCurve® Fiber, making our patching system more flexible and durable than traditional fiber.
Organized and Maintenance-Free
All cables can be retracted to your desired length—so you can deploy faster, troubleshoot easier, and stay more organized.
Supports Multiple Connectors
Compatible with LC-LC and LC-SC ports, it’s ready for a wide range of fiber applications and configurations.
Certified for Reliability
Meets ISO/IEC 11801-1:2017 standards and comes with a 10-Year Warranty for peace of mind.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
Key Features
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting

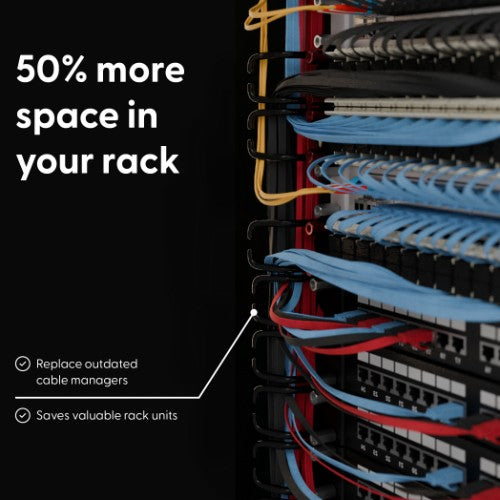

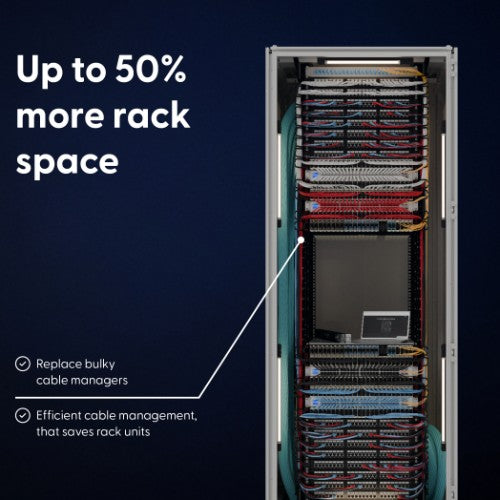

- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
Reasons To Buy
Deploy Faster, Maintain Less
Retractable fiber avoids tangles and strain, reducing errors and downtime.Use in Large-Scale Installations
Equipped with 1.8m cables, it perfectly covers up to 30 rack units.Built with Industry-Leading Fiber
Corning® ClearCurve® tech ensures bend resistance and flawless transmission.Simplifies Complex Fiber Jobs
Makes fiber optics just as manageable as copper—without compromise.Description
The Ultimate Cable Management SolutionThe patchbox.one with Fiber Optic cables is the ideal solution for a clean, efficient, and future-ready network rack. Equipped with ultra-flexible, retractable cables made from Corning® ClearCurve® Fiber, it delivers high performance while staying perfectly organized—no excess length, no mess.
High-Speed, High-Flexibility
Equipped with high-performing 1.8m fiber cables the patchbox.one offers seamless performance for enterprise network environments.
Fiber That Goes Further
We use bend-insensitive Corning® ClearCurve® Fiber, making our patching system more flexible and durable than traditional fiber.
Organized and Maintenance-Free
All cables can be retracted to your desired length—so you can deploy faster, troubleshoot easier, and stay more organized.
Supports Multiple Connectors
Compatible with LC-LC and LC-SC ports, it’s ready for a wide range of fiber applications and configurations.
Certified for Reliability
Meets ISO/IEC 11801-1:2017 standards and comes with a 10-Year Warranty for peace of mind.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
Specifications
| Features | |
|---|---|
| Fibre optic type | OS2 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable type | LC/SC |
| Cable length | 1.8 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Bending radius | 5 mm |
| Operating temperature (T-T) | -20 - 60 °C |
| Certification | ISO/IEC 11801-1:2017 |
| Country of origin | Hungary |
| Certificates | |
| Certification | ISO/IEC 11801-1:2017 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Bending radius | 5 mm |
| Weight | 7.08 kg |
| Cable length | 1.8 m |
| Package width | 799 mm |
| Package depth | 587 mm |
| Package height | 55 mm |
| Package weight | 8.56 kg |
| Packaging data | |
| Package width | 799 mm |
| Package depth | 587 mm |
| Package height | 55 mm |
| Package weight | 8.56 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |

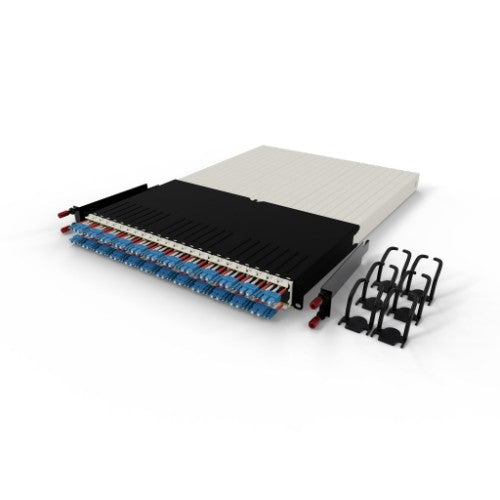

| Packaging content | 24 x patchbox.one / Cassette / 30RU / OS2 / LC-SC 1 x patchbox.one / Frame 4 x Flanges 4 x Hex nuts 6 x Patchcatch 2 x Mounting rails |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable type | LC/SC |
| Cable length | 1.8 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | Hungary |
