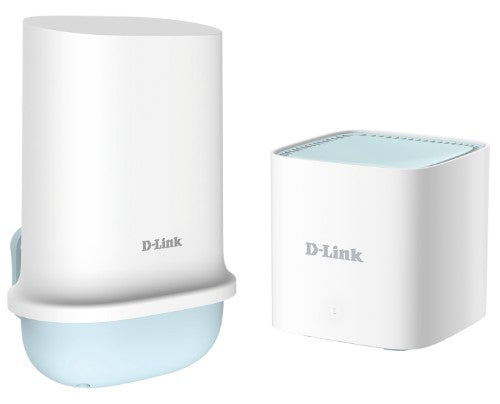

D-Link DWP-1010/ODU & M15/IDU Bundle Kit

Wi-Fi 6 AX1500 Router & Outdoor 5G Unit, 5G/LTE, WPA3 Security, MU-MIMO & OFDMA

Key Features

• Dual mode enables selection between 5G and LTE connectivity based on signal reception quality (ODU Unit)
• IP67 design for water and dust resistance, perfect for IP67 design for water and dust resistance, perfect for
• Wi-Fi 6 (802.11ax) delivers blazing-fast wireless connectivity with increased range and reliability (IDU Unit)
• Compliant to 802.3at PoE standards
• Plug-and-Play with Ethernet interface
• 4 simultaneous streams, 1024 QAM and OFDMA technology boosts speed, range and network efficiency (IDU Unit)
• Easy-To-Use the EZ-Site Survey or Falcon APP for easy setup and configuration

Description

The DWP-1010/KT kit is an easy-to-deploy, high-performance 5G/LTE & Wi-Fi 6 Mesh-ready
system for homes and businesses. Modern design and flexible deployment options combined
with ease of use make the DWP-1010/KT ideal for both large-scale and individual deployments,
especially thanks to Wi-Fi Mesh functionality.

Specifications

Technical details
Device type	Cellular network router
Ethernet LAN features
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Design
Device type	Cellular network router
Product colour	White
Reset button	Yes
LED indicators	Power, Status
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Security
Security algorithms	WPA, WPA2, WPA3
Performance
Antenna type	Internal
Antennas quantity	5
Antenna
Antenna type	Internal
Antennas quantity	5
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Weight	760 g
Width	144.8 mm
Depth	105.4 mm
Height	210.4 mm
