Description

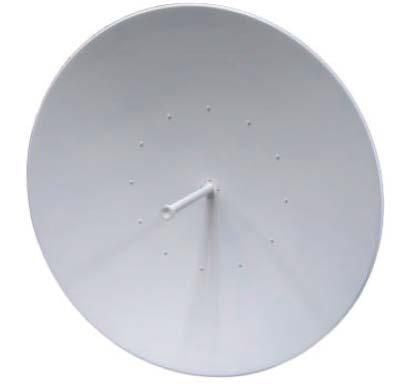

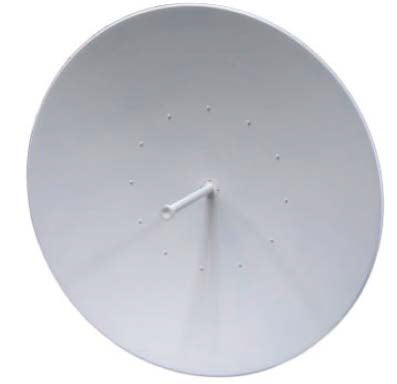

0.6 m, N Female, 5.25 - 5.85 GHz, 1.5:1 VSWR, White
Key Features
- Fully Preassembled at the factory – simplifies installation on site and guarantees “factory tested” quality
Description
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 29.5 dBi |
| Frequency band | 5.25 - 5.85 GHz |
| Vertical beam width | 6.2° |
| Horizontal beam width | 6.2° |
| Features | |
| Survival wind speed | 125 km/h |
| Maximum cable loss with connectors | -14 dB |
| Front to back ratio | 38 dB |
| Mounting pipe | 50.8 - 114 mm |
| Connector gender | Female |
| Antenna type | Parabolic antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Polarization | Dual polarization |
| Product colour | White |
| Antenna connector type | N-type |
| Antenna gain level (max) | 29.5 dBi |
| Frequency band | 5.25 - 5.85 GHz |
| Vertical beam width | 6.2° |
| Horizontal beam width | 6.2° |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 9.9 kg |
| Diameter | 60 cm |
| Package width | 200 mm |
| Package depth | 710 mm |
| Package height | 710 mm |
| Package weight | 11.3 kg |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 710 mm |
| Package height | 710 mm |
| Package weight | 11.3 kg |
| Technical details | |
| Antenna gain level (max) | 29.5 dBi |
| Frequency band | 5.25 - 5.85 GHz |
| Antenna type | Parabolic antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Vertical beam width | 6.2° |
| Polarization | Dual polarization |
| Horizontal beam width | 6.2° |
| Antenna connector type | N-type |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
