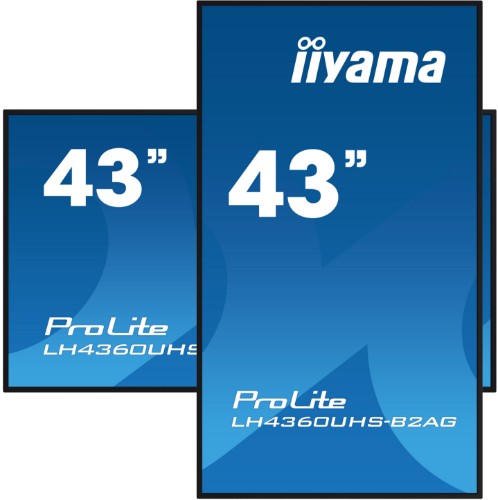

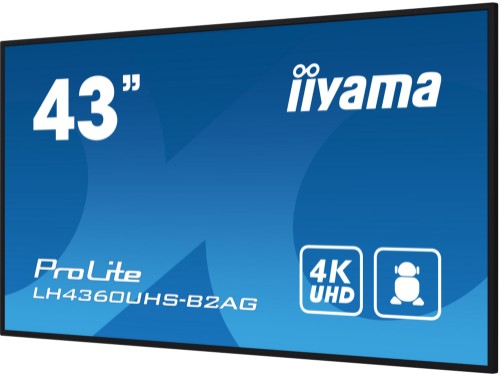

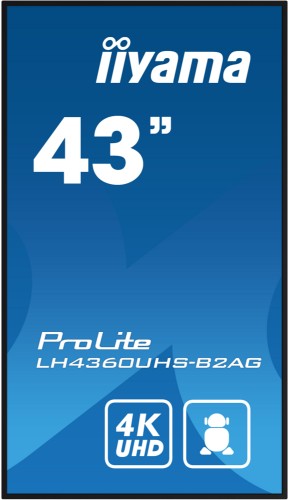

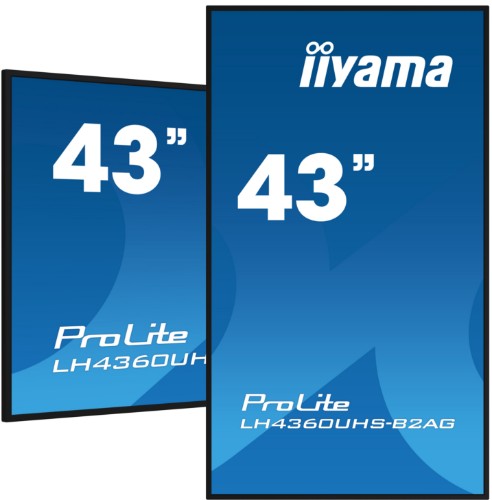

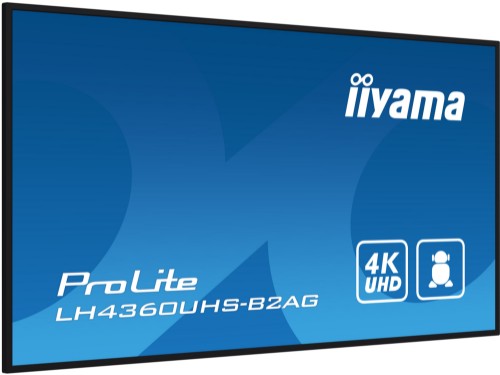

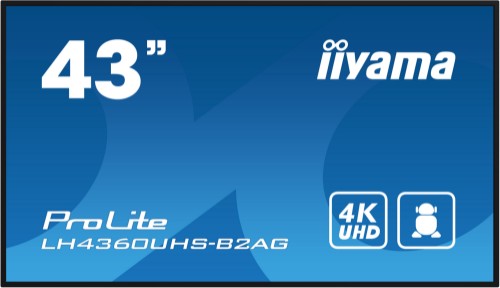

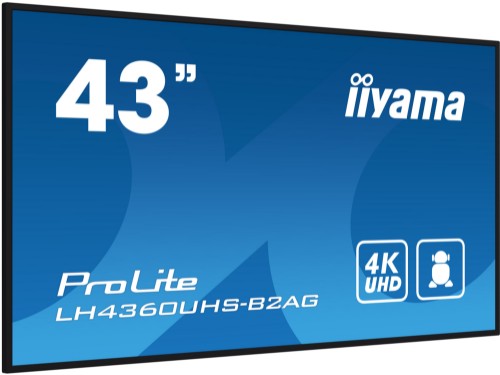

43" 4K UHD professional digital signage display with advanced control and connectivity options
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Ultra Slim
With 50 percent depth saving over similar models, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.
Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.
Cable Management
Cables can be neatly tied and routed with the special cable ducts, so they cannot come loose or move around.
Description
Elevate your visual communication with the LH4360UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH4360UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
Specifications
| Display |
|---|
| Panel type |
VA |
| Display number of colours |
1.07 billion colours |
| Touchscreen |
No |
| Active display area (W x H) |
941.2 x 529.4 mm |
| Display technology |
LED |
| Display diagonal |
108 cm (42.5") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.245 x 0.245 mm |
| Display diagonal (metric) |
108 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
28 - 160 kHz |
| Anti-glare screen |
Yes |
| Surface hardness |
3H |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
0 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
2 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital A-board |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
9 mm |
| Bezel width (side) |
9 mm |
| Bezel width (bottom) |
9 mm |
| Product colour |
Black |
| Panel mounting interface |
400 x 300 mm |
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
45 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency class (SDR) |
E |
| Computer system |
|---|
| Computer system |
No |
| Processor cores |
4 |
| Processor family |
ARM Cortex |
| Processor model |
A53 |
| Operating system installed |
Android 11 |
| Internal memory |
2 GB |
| Internal storage capacity |
16 GB |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A53 |
| Weight & dimensions |
|---|
| Display width |
967.4 mm |
| Display depth |
40 mm |
| Display height |
555.9 mm |
| Display weight |
9.1 kg |
| Packaging data |
|---|
| Package width |
1075 mm |
| Package depth |
1075 mm |
| Package height |
652 mm |
| Package weight |
12.7 kg |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
Internal |
| Panel type |
VA |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Processor model |
A53 |
| Operating system installed |
Android 11 |
| Internal memory |
2 GB |
| Internal storage capacity |
16 GB |
| Other features |
|---|
| Power supply type |
Internal |
| Panel type |
VA |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LED |
| Bezel width (top) |
9 mm |
| Bezel width (side) |
9 mm |
| Bezel width (bottom) |
9 mm |
| Quick start guide |
Yes |
