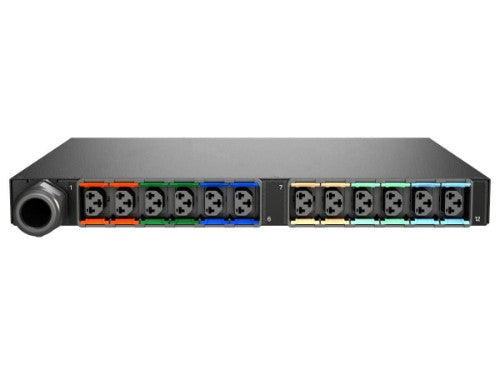

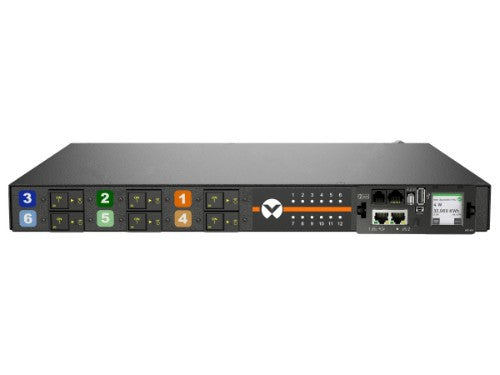

rPDU, Switched Unit Level Monitoring EC, 32A, 230/400V WYE, 22.0kW, Horizontal, (12) Combination C13/C19, 10ft / 3m power cord with 3P+N+E (IP44), Black Powder Coat.
Key Features
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices
Description
Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Specifications
| Design |
|---|
| Type |
Three-phase |
| PDU types |
Switched |
| Mounting |
Horizontal |
| Display |
LED |
| Product colour |
Black |
| Rack capacity |
0U |
| Ports & interfaces |
|---|
| USB ports quantity |
1 |
| AC outlets quantity |
12 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Cable length |
3 m |
| Reset button |
Yes |
| Management features |
|---|
| Supported network protocols |
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Monitoring |
Current, Power, Voltage |
| Ergonomics |
|---|
| Cable length |
3 m |
| Display |
LED |
| Power |
|---|
| Nominal input voltage |
200-240/346-415 V |
| Power protection features |
Over current |
| Maximum current |
32 A |
| Load capacity |
230 VA |
| AC input frequency |
50/60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
305 mm |
| Height |
44 mm |
| Package weight |
8.16 kg |
| Packaging data |
|---|
| Package weight |
8.16 kg |
