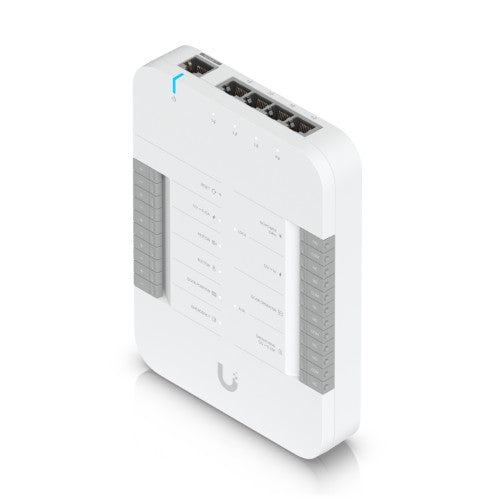

Single door, 5x 10/100/1000 Base-T, PoE++, 174.9 x 126 x 32.9 mm
Key Features
- (2) Lock terminals (12V and Dry)
- (2) AUX terminals for an external siren and automatic door opener
- (4) Additional inputs (sensors and buttons)
- Connect and power using PoE++
- Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime
Description
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
Specifications
| Technical details |
|---|
| Maximum number of doors |
1 door(s) |
| Interface |
Ethernet |
| Exit request |
Yes |
| LED indicators |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), UL |
| Performance |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power |
|---|
| Power consumption (typical) |
30 W |
| DC voltage range |
12 - 50 V |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
174.9 mm |
| Weight |
363 g |
| Height |
32.9 mm |
| Depth |
126 mm |
