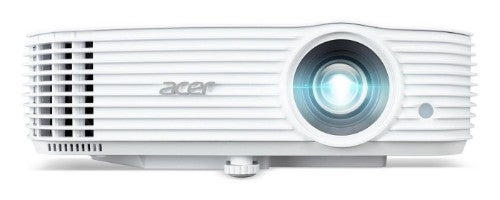

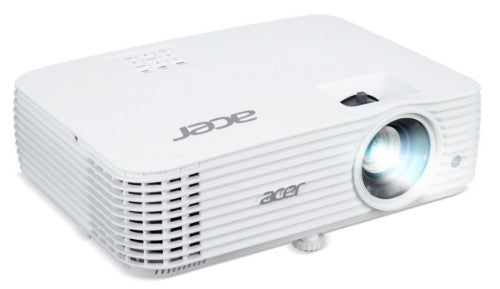

Acer H6542, 4000 ANSI lumens, DLP, 1080p (1920x1080), 10000:1, 16:9, 685.8 - 7620 mm (27 - 300")
Description
Acer H6542. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 22 - 24.1 mm, Aperture range (F-F): 2.56 - 2.68. Analog signal format system: NTSC, PAL, SECAM, Digital signal format system: EDTV, HDTV, Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RS-232, HDMI version: 1.4a
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colours |
| Projector native resolution |
1080p (1920x1080) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
4:3, 16:9 |
| Screen size compatibility |
685.8 - 7620 mm (27 - 300") |
| Projection distance |
1 - 10 m |
| Contrast ratio (typical) |
10000:1 |
| Zoom ratio |
1.1:1 |
| Zoom capability |
Yes |
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 100 kHz |
| Projector brightness (economic mode) |
3200 ANSI lumens |
| Uniformity |
85% |
| Keystone correction, vertical |
-40 - 40° |
| Projection technology |
DLP |
| Projector brightness |
4000 ANSI lumens |
| Projection modes |
Ceiling, Front, Rear |
| Zoom type |
Manual |
| Lamps |
|---|
| Lamp type |
P-VIP |
| Lamps quantity |
1 lamp(s) |
| Lamp power |
203 W |
| Light source type |
Lamp |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
10000 h |
| Light source |
|---|
| Lamp type |
P-VIP |
| Lamps quantity |
1 lamp(s) |
| Lamp power |
203 W |
| Light source type |
Lamp |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
10000 h |
| Lens system |
|---|
| Zoom ratio |
1.1:1 |
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
22 - 24.1 mm |
| Aperture range (F-F) |
2.56 - 2.68 |
| Offset |
116% |
| Zoom type |
Manual |
| Scanning frequency |
|---|
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 100 kHz |
| Video |
|---|
| Digital signal format system |
EDTV, HDTV |
| Analog signal format system |
NTSC, PAL, SECAM |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
3 W |

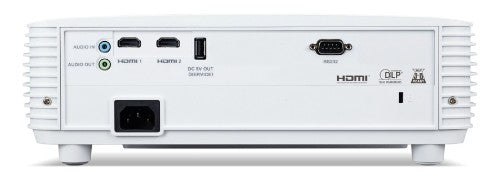

| Ports & interfaces |
|---|
| HDMI version |
1.4a |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Serial interface type |
RS-232 |
| AC (power) in |
Yes |
| USB 2.0 Type-A ports quantity |
1 |
| Sound emission |
|---|
| Noise level |
33 dB |
| Noise level (economic mode) |
29 dB |
| Technical details |
|---|
| Product colour |
White |
| Projection modes |
Ceiling, Front, Rear |
| Lamp power |
203 W |
| Digital signal format system |
EDTV, HDTV |
| Performance |
|---|
| Market positioning |
Presentation |
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 100 kHz |
| Noise level |
33 dB |
| Noise level (economic mode) |
29 dB |
| Features |
|---|
| Noise level |
33 dB |
| Noise level (economic mode) |
29 dB |
| Eye protection |
Yes |
| Projection modes |
Ceiling, Front, Rear |
| Compatible operating systems |
Google Chrome PC, Mac PC, Windows PC |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
3 W |
| Design |
|---|
| Market positioning |
Presentation |
| Product type |
Standard throw projector |
| Product colour |
White |
| Power |
|---|
| AC input voltage |
120 - 230 V |
| AC input frequency |
50 Hz |
| Power source |
AC |
| Power consumption (typical) |
260 W |
| Power consumption (standby) |
0.5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.4 kg |
| Width |
299.5 mm |
| Depth |
220 mm |
| Height |
105.1 mm |
| Packaging content |
|---|
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
Power |
| Batteries included |
Yes |
