Description
8MP, 1/2.8” 4K Exmor CMOS, 0.46 lux, 30X Zoom, AC100 - 240V to DC 12V/2A, 180.0 x 192.0 x 145.0 mm, 2.0 (±0.1) kg

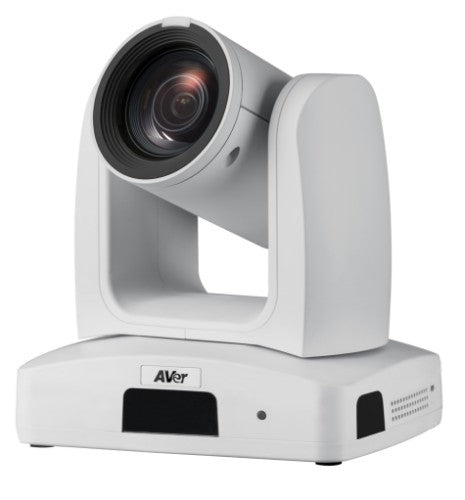

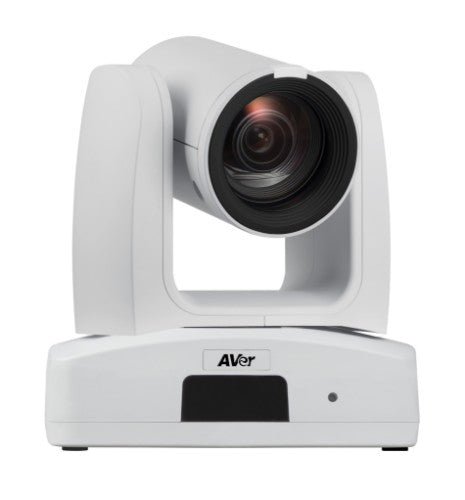

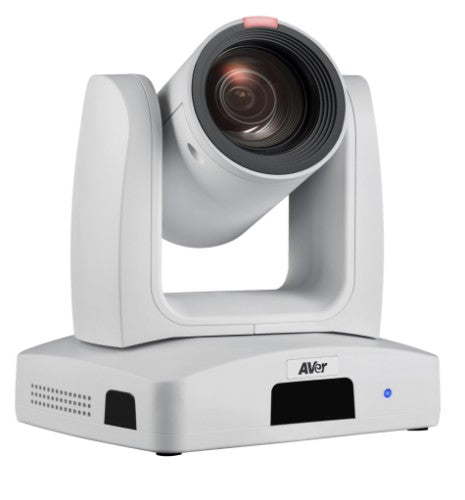

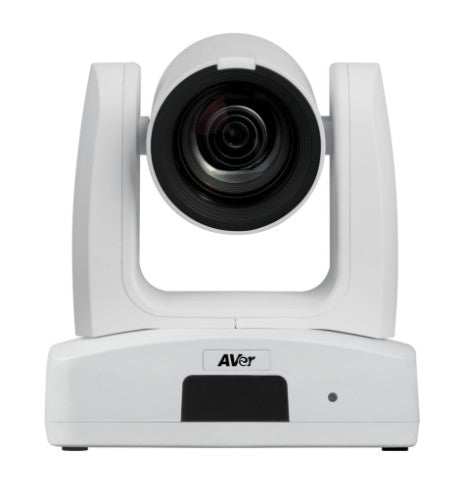

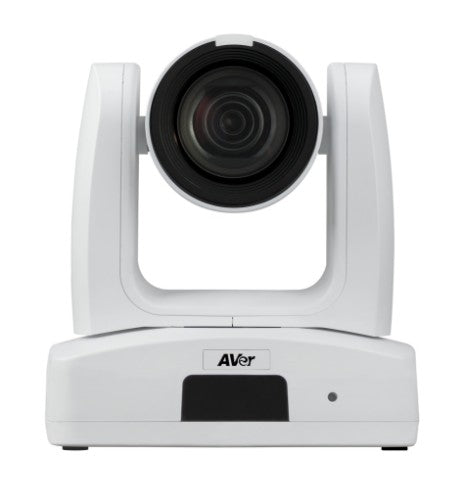

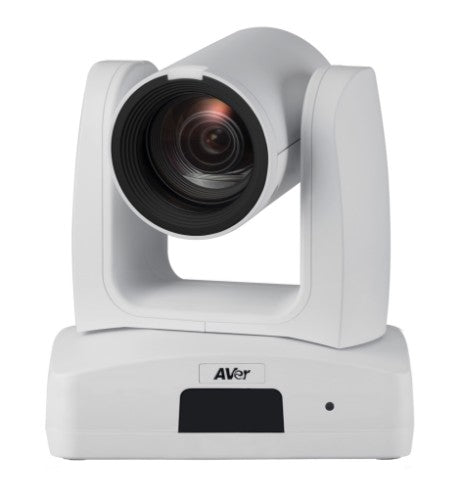

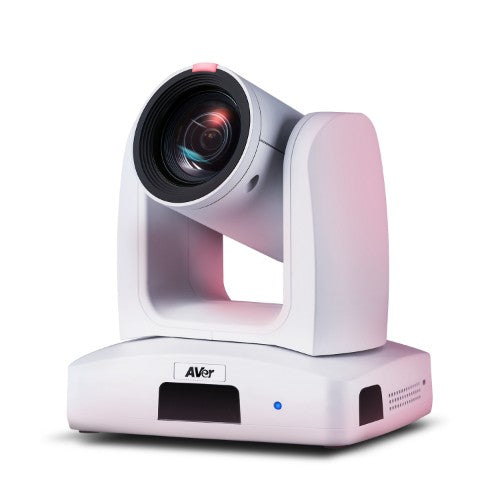

The PTC330UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Upgrade Your Cameras to NDI®!
Upgrade your AVer cameras with NDI®|HX. A separate NDI®|HX license key is required for each camera, and internet connection is required for initial activation.
4K Output Resolution
Equipped with 4K resolution, the PTC330UV2 provides ultra-precise auto tracking. The PTC330UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
30X Optical Zoom & 12X Digital Zoom
The zoom power of the PTC330UV2 camera reaches an incredible 360X (30X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC330UV2.
Human Detection AI
Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC330UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
With the PTC310HWV2, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
Key Features
- 4K Ultra HD Resolution
- 30X Optical Zoom
- IP/HDMI/USB/3G-SDI
- Human Detection AI
- Presenter Mode
- Zone Mode
- Hybrid Mode
- Intuitive Web UI

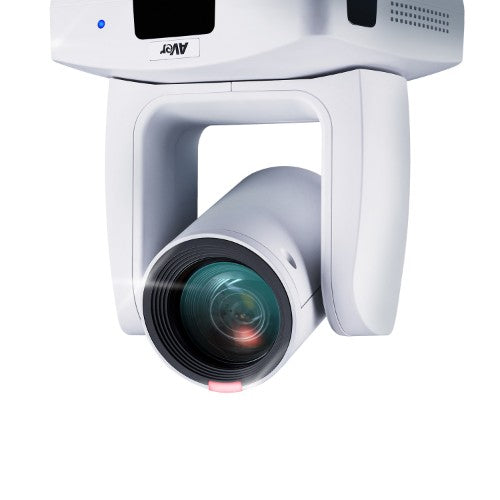

- Upside-Down Installation
- Voice Tracking
Description
AI Auto Tracking PTZ CameraThe PTC330UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC330UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 30X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Upgrade Your Cameras to NDI®!
Upgrade your AVer cameras with NDI®|HX. A separate NDI®|HX license key is required for each camera, and internet connection is required for initial activation.
4K Output Resolution
Equipped with 4K resolution, the PTC330UV2 provides ultra-precise auto tracking. The PTC330UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
30X Optical Zoom & 12X Digital Zoom
The zoom power of the PTC330UV2 camera reaches an incredible 360X (30X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC330UV2.
Human Detection AI
Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC330UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
With the PTC310HWV2, you can simply click on a target to quickly adjust the shooting angle and initiate precise tracking, ensuring you can redirect in an instant. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
Specifications
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Sensor type | Exmor |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 30x |
| Digital zoom | 1x |
| Combined zoom | 30x |
| Focal length range | 4.5 - 135 mm |
| Minimum illumination | 0.46 lx |
| White balance | ATW, Auto, Manual, One push |
| Focus adjustment | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Horizontal field of view (wide) | 62.3° |
| Horizontal field of view (tele) | 2.5° |
| PTZ control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of camera presets | 10 |
| Snapshot | Yes |
| Network streaming | Yes |
| 3D NR (Noise Reduction) | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Field of view (wide) | 69.2° |
| Field of view (tele) | 2.8° |
| Vertical field of view (wide) | 37.3° |
| Vertical field of view (tele) | 1.4° |
| Progressive scan | Yes |
| Flip & mirror | Yes |
| PTZ protocols | Pelco-P/D, VISCA |
| Camera type | Single camera |
| Zoom capability | Yes |
| Photo feature | Yes |
| Face tracking | Yes |
| Video | |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Supported video modes | 720p, 1080p, 2160p |
| Video formats supported | M-JPEG, YUY2 |
| HD type | 4K Ultra HD |
| Number of TV lines | 1400 |
| Design | |
| Product colour | White |
| Mounting type | Stand/Wall mounting |
| Image stabilizer | Yes |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Country of origin | Taiwan |
| Web-based management | Yes |
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Tally light | Yes |
| Tilt preset speed | 200 °/sec |
| Pan preset speed | 200 °/sec |
| Cable management | Yes |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| RS-422 ports | 1 |
| 3G-SDI output | Yes |
| Line-in | Yes |
| Power | |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 19 W |
| Power source type | DC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Harmonized System (HS) code | 8525890000 |
| Warranty period | 2 year(s) |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | iOS |
| Audio | |
| Audio codecs | AAC-LC |
| Audio channels | 2 |
| Protocols | |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP |
| Network streaming | Yes |
| Multi-stream capability | 5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60) |
| Bit rate range | 512 - 12000 Kbit/s |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Network configuration | DHCP, IP Address Gateway, Subnet Mask, DNS |
| Streaming capability | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Remote control included | Yes |
| Cables included | RS-232 |
| AC adapter included | Yes |
| Power supply included | Yes |
| Warranty card | Yes |
| Screws included | Yes |
| Number of screws | 8 |
| Number of cable ties | 4 |
| Mounting brackets included | Yes |
| Cable ties included | Yes |
| Performance | |
| Screen mirroring | Yes |
| Remote control function | Yes |
| Remote control type | IR |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Auto-tracking | Yes |
| Auto framing | Yes |
| Logistics data | |
| Products per pallet | 72 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8525890000 |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 145 mm |
| Height | 192 mm |
| Weight | 2 kg |
| Packaging data | |
| Package width | 292 mm |
| Package depth | 245 mm |
| Package height | 303 mm |
| Package weight | 4.9 kg |
| Package type | Box |
