Manhattan Wall Mount With Extension for TV & Monitors (Tiltable Anti Theft), For screens 37" to 100", VESA compatability: all between 200x200mm and 800x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 75kg,

Wall Mount With Extension for TV & Monitors (Tiltable Anti Theft), For screens 37" to 100", VESA compatability: all between 200x200mm and 800x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 75kg, Bracket

Key Features

• Supports one flat or curved 43" to 90" TV up to 75 kg (165 lbs.)
• Optimized views with +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment

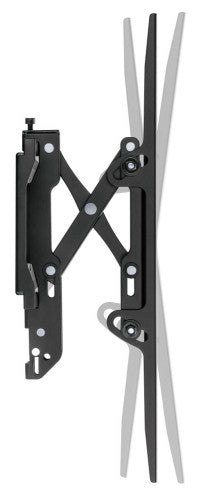

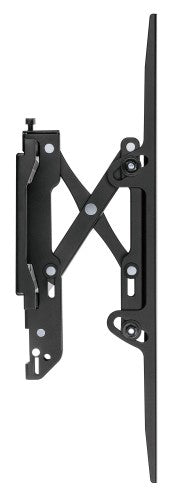

• Holds TV 75 mm (3 in.) from wall and optionally extends additional 60 mm (2.4 in.) for easier access to cabling
• Heavy-duty construction with 2 mm thick reinforced steel and powder coating
• Includes attachable bubble level

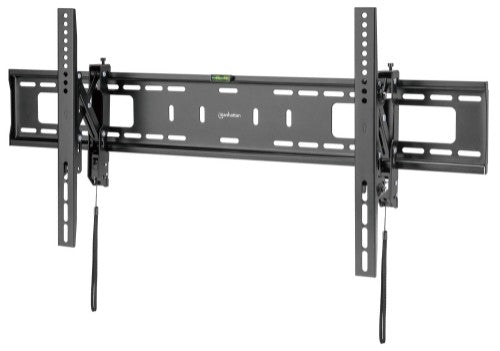

• Snap-in spring locks with release cords for easy installation or removal and additional safety
• Anti-theft locking option, great for digital signage (requires padlock, not included)
• Meets VESA standards 200x200 to 800x400 e.g. 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400, 800x400

Description

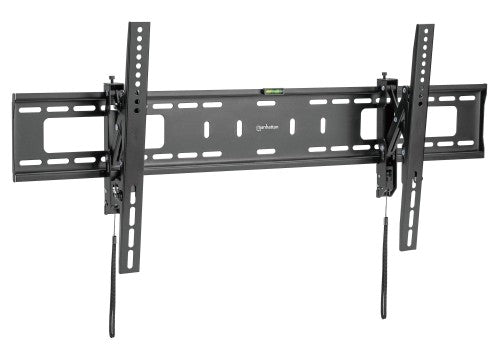

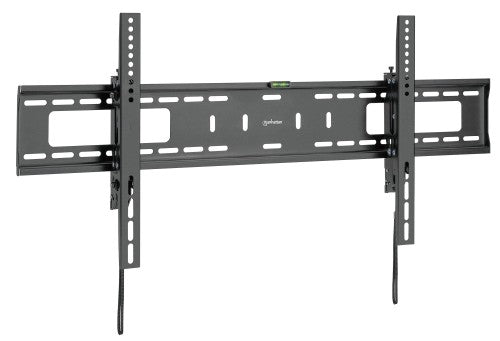

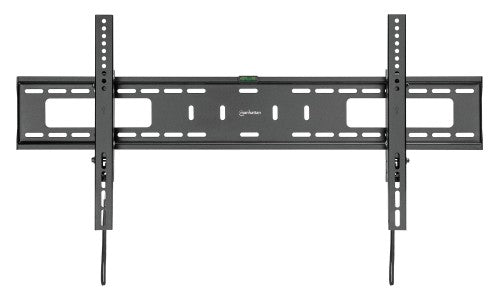

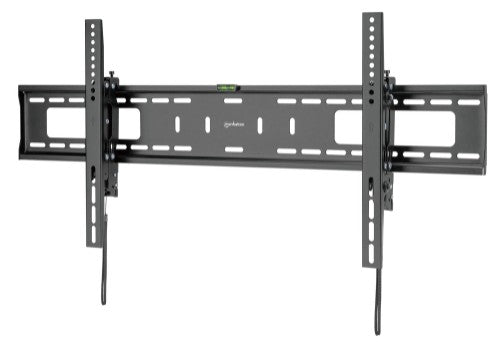

Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling
This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.

Optimal Viewing Angles

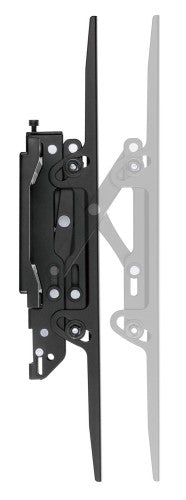

Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.

Robust and Reliable Construction
Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.

Precision Installation Made Simple
Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.

Enhanced Security
Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) provides an extra measure of security, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400,800 x 400
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	2.29 m (90")
Maximum weight capacity	75 kg
Ergonomics
Tilt angle range	-10 - 5°
Swivel angle range	-5 - 5°
Distance to the wall (min)	7.5 cm
Distance to the wall (max)	13.6 cm
Tilt adjustment	Yes
Swivelling	Yes
Technical details
Number of displays supported	1
Distance to the wall (min)	7.5 cm
Distance to the wall (max)	13.6 cm
Product colour	Black
Mounting type	Wall
Design
Product colour	Black
Anti-theft function	Yes
Housing material	Steel
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	954 mm
Height	430 mm
Weight	4.21 kg
Depth (max)	13.6 cm
Packaging data
Package width	165 mm
Package depth	980 mm
Package height	57 mm
Package weight	4.65 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	995 mm
Master (outer) case height	135 mm
Master (outer) case gross weight	19.5 kg
Products per master (outer) case	4 pc(s)
Other features
Mounting type	Wall
