Description
1/2.78” CMOS, 2.8mm f-f, 2.2F, M12
Ideal for both indoor and outdoor installation, this sensor unit offers high-quality 5 MP video, 110° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.
High image quality
This standard sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 110° horizontal field of view, it’s perfect when you need wide -area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
With a small cylinder-shaped form factor, AXIS F2107-RE offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F21 sensors to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.
Ruggedized standard sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this standard sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure a ruggedized installation.
Key Features
- High-quality 5 MP resolution
- 110° horizontal field of view
- Rugged sensor unit with SMA connector
- Can be installed in vehicles and machinery
- IP66-/IP67-/IP6K9K-rated
Description

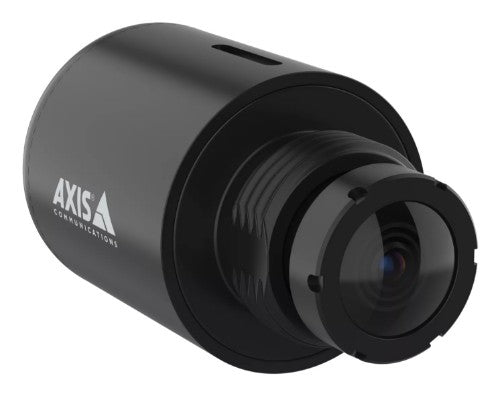

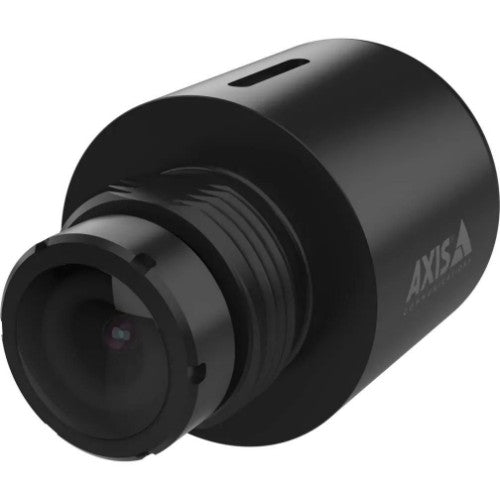

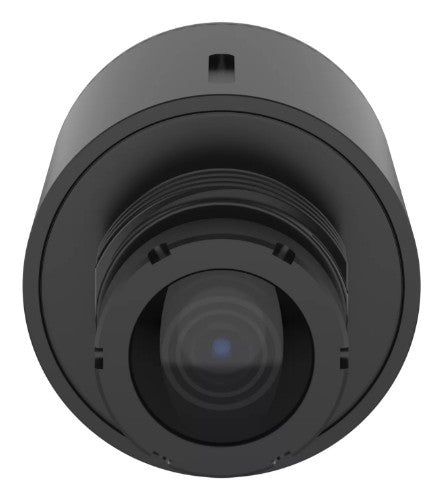

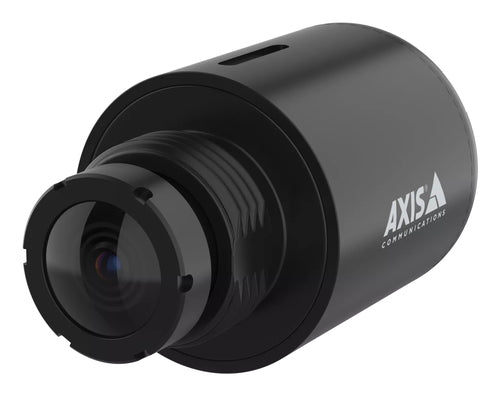

AXIS F2107-RE Standard SensorIdeal for both indoor and outdoor installation, this sensor unit offers high-quality 5 MP video, 110° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.
High image quality
This standard sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 110° horizontal field of view, it’s perfect when you need wide -area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
With a small cylinder-shaped form factor, AXIS F2107-RE offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F21 sensors to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.
Ruggedized standard sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this standard sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure a ruggedized installation.
Specifications
| Features | |
|---|---|
| Housing material | Aluminium |
| Brand compatibility | Axis |
| Type | Sensor unit |
| Placement supported | Universal |
| Product colour | Black |
| Certification | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration Shock), IEC/EN 60529 IP66/IP67, IEC/EN 61373 Category 1 Class B, ISO 21207 (Method B), ISO 20653 IP6K9K, NEMA 250 Type 4X |
| International Protection (IP) code | IP66, IP67, IP6K9K |
| Wide Dynamic Range (WDR) | Yes |
| Lens mount interface | M12 |
| Image sensor size | 1/2.78" |
| Sensor type | CMOS |
| Focal length range | 2.8 mm |
| F-number (relative aperture) | 2 |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 80° |
| Resolution | 2592 x 1944 pixels |
| Number of connectors | 1 |
| Image sensor | |
| Lens mount interface | M12 |
| Image sensor size | 1/2.78" |
| Sensor type | CMOS |
| Focal length range | 2.8 mm |
| F-number (relative aperture) | 2 |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 80° |
| Resolution | 2592 x 1944 pixels |
| Ergonomics | |
| Number of connectors | 1 |
| Power | |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.8 W |
| Technical details | |
| Type | Sensor unit |
| Placement supported | Universal |
| International Protection (IP) code | IP66, IP67, IP6K9K |
| Doesn't contain | BFR, CFR, PVC |
| Weight & dimensions | |
| Width | 30 mm |
| Weight | 54 g |
| Height | 30 mm |
| Depth | 58 mm |
| Colour | |
| Product colour | Black |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Certificates | |
| Certification | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration Shock), IEC/EN 60529 IP66/IP67, IEC/EN 61373 Category 1 Class B, ISO 21207 (Method B), ISO 20653 IP6K9K, NEMA 250 Type 4X |
