Zigbee, -20 - 60 °C, 2.4 GHz, 300 m, 110 - 240 VAC, 50 Hz, 2 x 1.5 V AA Alkaline
Description

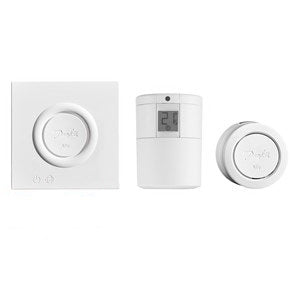

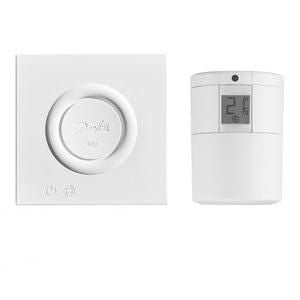

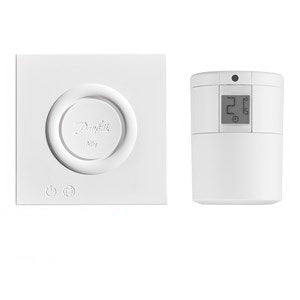

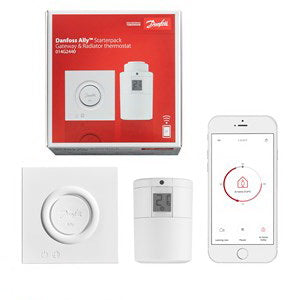

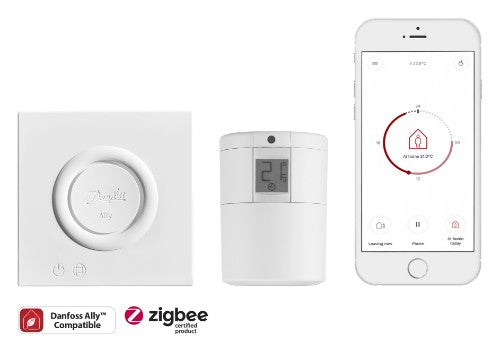

The Danfoss Ally™ Gateway is a programmable, wireless control system that connects all the
Danfoss Ally™ devices to the internet and intelligently controls your heating via a free app downloadable from Google Play and App Store.
The Danfoss Ally™ Radiator Thermostat is a connected radiator thermostat for the residential use.
The Danfoss Ally™ Radiator Thermostat is battery powered, compact and easy to operate with a manual hand wheel and single button. The Danfoss Ally™ Radiator Thermostat is a Zigbee Certified Product, compatible with the Danfoss Ally™ Gateway and with the third party certified systems using a Zigbee technology.
The Danfoss Ally™ Radiator Thermostat is easy to install, in just 30 seconds! The adapters are available for all thermostatic valves manufactured by Danfoss and most other radiator valve manufacturers.
Specifications
| Performance |
|---|
| Operating frequency |
2400 MHz |
| Transmission range |
0 - 30 m |
| Voice control |
Yes |
| Virtual assistant |
Amazon Alexa & Google Assistant |
| Operating temperature (T-T) |
-10 - 55 °C |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Ethernet LAN |
Yes |
| USB ports quantity |
1 |
| Wi-Fi |
No |
| ZigBee |
Yes |
| Design |
|---|
| Product colour |
White |
| Certification |
CE, Zigbee, IEEE |
| Reset button |
Yes |
| International Protection (IP) code |
IP20 |
| Built-in display |
No |
| Power |
|---|
| Input voltage |
110 - 240 V |
| Power consumption (max) |
5 W |
| Power consumption (standby) |
2 W |
| Weight & dimensions |
|---|
| Width |
95 mm |
| Depth |
23 mm |
| Height |
95 mm |
| Packaging content |
|---|
| Temperature sensor |
Yes |
| Temperature sensor operating temperature |
5 - 35 °C |
