Description
Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W
The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

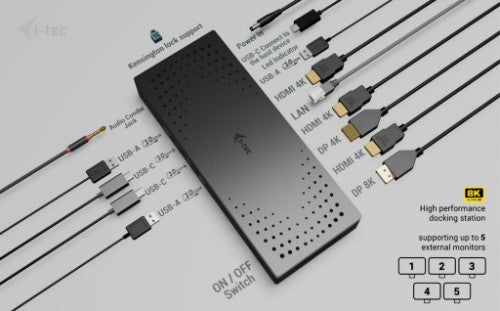

- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution

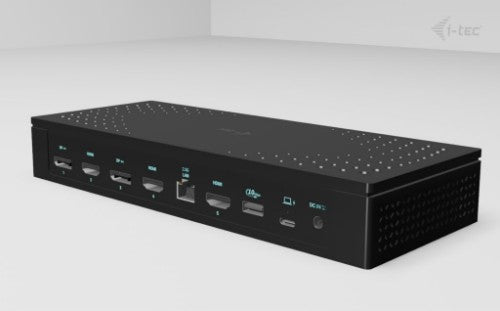

- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.
Key Features
- A docking station built on the latest DisplayLink DL7400 platform that allows up to five monitors to be connected simultaneously
- The dock is compatible with almost all current notebooks (connects via USB-A, USB-C, USB4 or Thunderbolt™ 3/4 ports)
- Support for the highest possible resolution: one monitor can operate at up to 8K/60 Hz, or up to five monitors at up to 4K/60 Hz
- The dock has two USB-C ports with up to 15W of charging power for charging tablets and high-performance smartphones

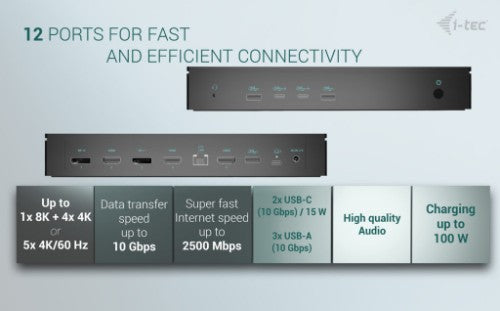

- There are 5 USB ports, including two USB-C (10 Gbps) and three USB-A (10 Gbps)
- The superfast LAN port supports speeds up to 2.5 Gbps (10/100/1000/2500 Mbps)
- A combined 3.5mm audio/microport allows you to connect, for example, integrated headphones with microphone
- The docking station supports up to 100 W of power for a connected laptop or tablet
- Docking station is compatible for vertical mounting behind a monitor with VESA mounting support
Description
The highest performance docking station possible! Supports up to five external monitors* with 4K/60Hz resolution. And one monitor can even run at 8K/60Hz! The ideal dock product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features two USB-C fast charging ports (with up to 15W charging power), especially for charging smartphones and tablets, as well as fast USB ports, a 2.5Gbps LAN port, and other peripherals.The docking station can be connected to virtually any notebook regardless of make, model or operating system type. Any USB port* is sufficient.
The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.
- Support for up to 5 external monitors* with 1x 8k/60Hz or 5x 4K/60Hz resolution
- Video ports: 3x HDMI* and 2x DP
- 2x USB-C (10 Gbps), with up to 15W charging support
- 3x USB-A (10 Gbps)
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/microphone port
- Laptop power up to 100 W
- Docking station on/off button
- Support for installation behind a monitor
* If connected via USB-A, only four monitors via DP and HDMI ports (video ports 1-4) will be supported and notebook/tablet charging will not be possible.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 5 |
| On/off switch | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Data transfer rate | 10 Gbit/s |
| Cable lock slot type | Kensington |
| HD type | 8K Ultra HD |
| VESA mounting | Yes |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Storage | |
| Card reader integrated | No |
| Power | |
| Compatible power plug types | UK |
| Output voltage | 20 V |
| Output current | 6.5 A |
| Power supply | 130 W |
| USB cable length | 1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android, ChromeOS |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Weight | 495 g |
| Width | 245 mm |
| Depth | 98 mm |
| Height | 37 mm |
| Package weight | 1.28 kg |
| Package width | 259 mm |
| Package depth | 142 mm |
| Package height | 89 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.28 kg |
| Package width | 259 mm |
| Package depth | 142 mm |
| Package height | 89 mm |

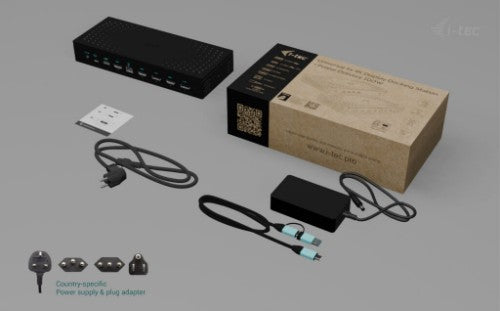

| Packaging content | |
| Manual | Yes |

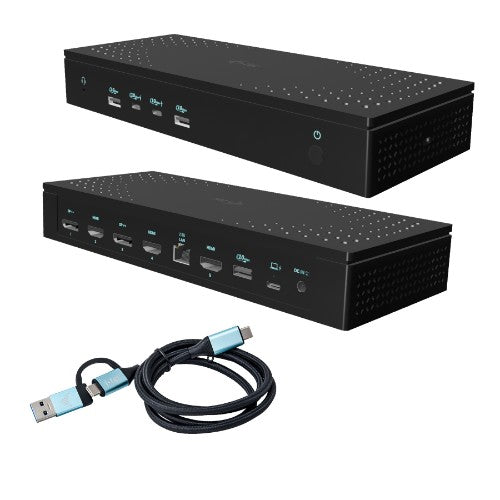

| Cables included | USB Type-A to USB Type-C |
| AC adapter included | Yes |
