Description

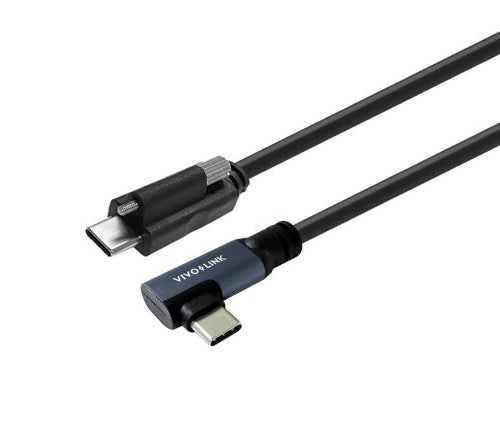

USB-C to USB-C Angled Cable 1.5m with lock screw Supports 20 Gbps data
Support following formats: DisplayLink, DP1.4, MST, Alt mode, DisplayPort
Key Features
- Supports DisplayLink, DP Alt‑mode sources with up to 4K/60 video resolution
- 24 pin "Full feature" cable with 6 data lanes
- Supports 20 Gbps data + USB2.0 data
- 100W charge power 5-20V/5A, E-Marker chipset in cable
- Reversible USB-C® connectors in metal housing with Gold-plated contacts
Description
Vivolink long range USB-C to USB-C is used for transmission of video, audio, data, and power signals. It supports 20 Gbps data rates and delivers up to 100 watts of power to charge mobile phones, external hard drives, and most laptops. Hassle-free, reversible USB‑C connectors offer ease of use. The USB-C is an ideal solution for applications that require a reliable, high-performance connection between USB‑C equipped devices.Support following formats: DisplayLink, DP1.4, MST, Alt mode, DisplayPort
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Angled |
| AWG wire size | 24 |
| USB version | USB 3.2 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 1.5 m |
| Connector contacts plating | Gold |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum data transfer rate | 20 Gbit/s |
| Input voltage | 20 V |
| Input current (max) | 5 A |
| Weight | 50 g |
| Quantity per pack | 1 pc(s) |
| Power | |
| Input voltage | 20 V |
| Input current (max) | 5 A |
| Weight & dimensions | |
| Cable length | 1.5 m |
| Weight | 50 g |
| Package weight | 60 g |
| Packaging data | |
| Package weight | 60 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Technical details | |
| Product colour | Black |
| Warranty period | 12 year(s) |
| Other features | |
| Product colour | Black |
| Warranty period | 12 year(s) |
| Logistics data | |
| Warranty period | 12 year(s) |
