Description
4K60 4:4:4, 4096x2160, HDR10+, HDCP 2.3, 60 Hz, 12 bit, 100-240 V, Black, 91 x 105 x 43 mm, 0.195 kg
The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD‑RXU‑4KZ‑101‑2G-B and an HD‑TXU‑4KZ Series transmitter, the DM Essentials input port of the HD‑RXU‑4KZ‑101‑2G-B must be connected to the DM Essentials output port of the HD‑TXU‑4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-2G is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

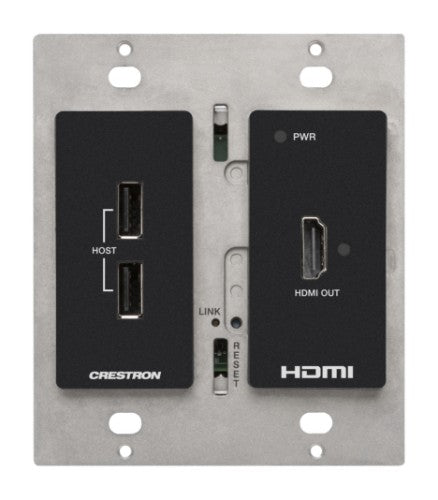

Two-Gang Wall Plate Design
The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Essentials transmitter (surface mountable only).
Key Features
- DM® Essentials receiver functionality designed to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter
- Point-to-point extension of an HDMI® AV signal and USB 2.0 data signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability

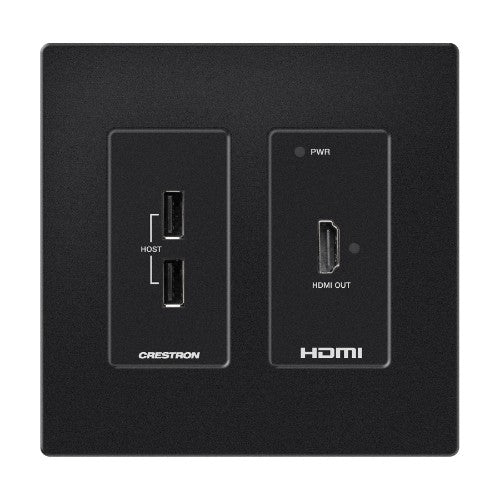

- Two-gang wall plate design with black finish
- Decorator style faceplate required (FP-G2-DM Series sold separately)
Description
The HD‑RXU‑4KZ‑101‑2G-B is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Essentials HD‑TXU‑4KZ Series transmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) must be used to connect the HD‑RXU‑4KZ‑101‑2G-B to the DM Essentials transmitter.The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD‑RXU‑4KZ‑101‑2G-B and an HD‑TXU‑4KZ Series transmitter, the DM Essentials input port of the HD‑RXU‑4KZ‑101‑2G-B must be connected to the DM Essentials output port of the HD‑TXU‑4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-2G is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.
Two-Gang Wall Plate Design
The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Essentials transmitter (surface mountable only).
Specifications
| Features | |
|---|---|
| Material | Metal, Polycarbonate (PC) |
| HDCP | Yes |
| Colour depth | 12 bit |
| Rack mounting | Yes |
| IR pass-through | Yes |
| Maximum refresh rate | 60 Hz |
| Frame rate | 60 fps |
| Audio formats supported | DTS, LPCM |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| LED indicators | Activity, Link, Power |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| RS-232 pass-through | Yes |
| HDCP pass-through | Yes |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| Technical details | |
| Material | Metal, Polycarbonate (PC) |
| HDCP | Yes |
| Colour depth | 12 bit |
| Rack mounting | Yes |
| IR pass-through | Yes |
| Maximum refresh rate | 60 Hz |
| Frame rate | 60 fps |
| Audio formats supported | DTS, LPCM |
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Ports & interfaces | |

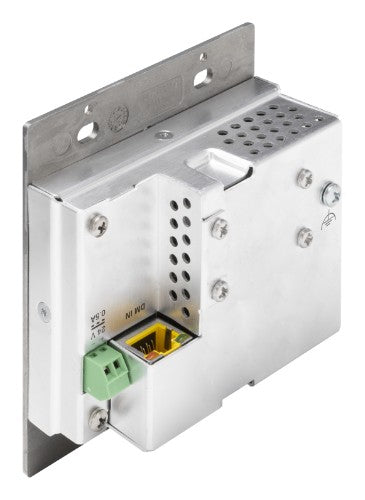

| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Connectivity technology | Wired |
| Power | |
| AC input voltage | 100 - 240 V |
| Current | 2.5 A |
| Power source type | AC |
| Indication | |
| LED indicators | Activity, Link, Power |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 91 mm |
| Height | 105 mm |
| Depth | 43 mm |
| Weight | 195 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | UTP |
| IR extender included | Yes |
| IR emitter included | Yes |
