Description
USB 3.0, 4K 60fps, 65 W, AC 100 - 240V to DC 54V/1.2A, RJ-45, HDMI, 164 x 32.5 x 118 mm, 620 g

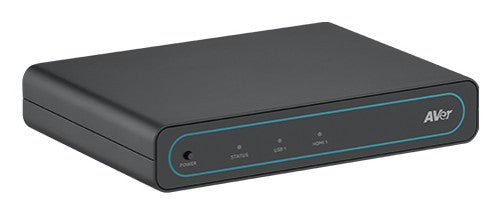

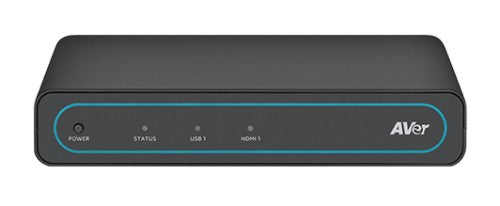

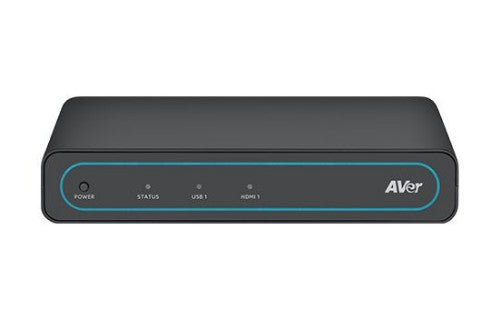

The AVer UE1 extends the reach of your PTZ cameras, overcoming traditional distance limitations with a seamless USB 3.0 extension solution. This unobtrusive extender kit transmits flawless USB 3.0 signals over long distances, leveraging your existing cabling. Perfect for environments with high-bandwidth connectivity, the UE1 lets you mount your PTZ cameras farther away while maintaining exceptional video quality.
Effortless Extension
Place your PTZ camera farther away while maintaining high-quality 4K video.
Flexible Deployment
Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.
Compact Design
Takes up minimal space and integrates seamlessly into any environment.
Plug-and-Play Simplicity
Operates immediately upon connection, eliminating the need for installing drivers.
Key Features
- Effortless Extension
- Flexible Deployment
- Compact Design
- Plug-and-Play Simplicity
- Designed for AVer PTZ Cameras
- PoE++ Camera Power
Description
USB ExtenderThe AVer UE1 extends the reach of your PTZ cameras, overcoming traditional distance limitations with a seamless USB 3.0 extension solution. This unobtrusive extender kit transmits flawless USB 3.0 signals over long distances, leveraging your existing cabling. Perfect for environments with high-bandwidth connectivity, the UE1 lets you mount your PTZ cameras farther away while maintaining exceptional video quality.
Effortless Extension
Place your PTZ camera farther away while maintaining high-quality 4K video.
Flexible Deployment
Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.
Compact Design
Takes up minimal space and integrates seamlessly into any environment.
Plug-and-Play Simplicity
Operates immediately upon connection, eliminating the need for installing drivers.
Specifications
| Features | |
|---|---|
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
| Control type | Buttons |
| Frame rate | 60 fps |
| On/off switch | Yes |
| Power | 65 W |
| Type | AV transmitter |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Bandwidth | 1 Gbit/s |
| Product colour | Black |
| Technical details | |
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
| Control type | Buttons |
| Frame rate | 60 fps |
| On/off switch | Yes |
| Power | 65 W |
| Ethernet LAN | Yes |
| Type | AV transmitter |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| Bandwidth | 1 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| WLAN data transfer rate (first band) | 5000 Mbit/s |
| Quantity per pack | 1 pc(s) |

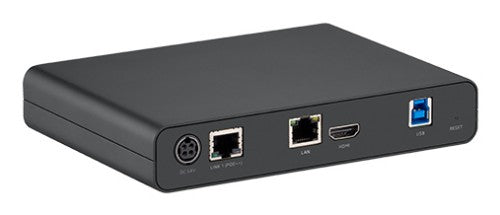

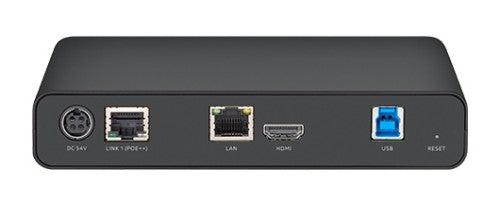

| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| Connectivity technology | Wired |
| WLAN data transfer rate (first band) | 5000 Mbit/s |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.2 A |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 65 W |
| Operating voltage | 54 V |
| Power source type | AC, DC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 164 mm |
| Height | 32.5 mm |
| Depth | 118 mm |
| Weight | 620 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | Power, USB Type-A to USB Type-B |
| AC adapter included | Yes |
