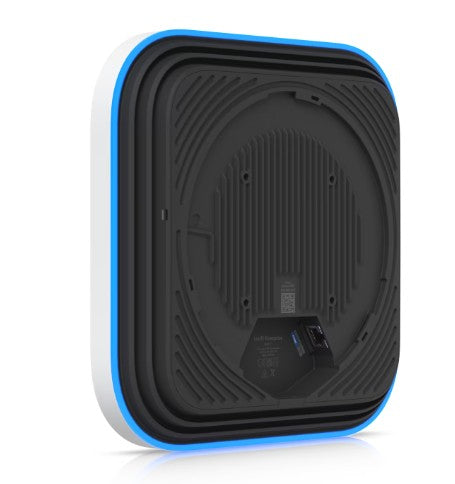

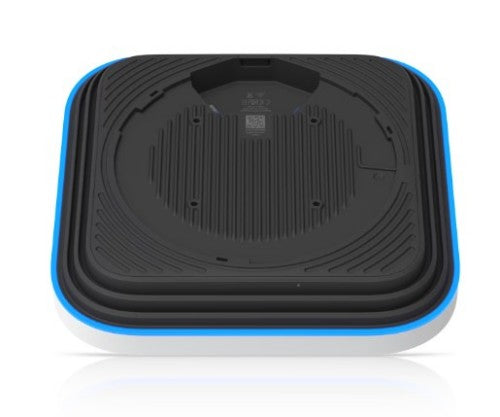

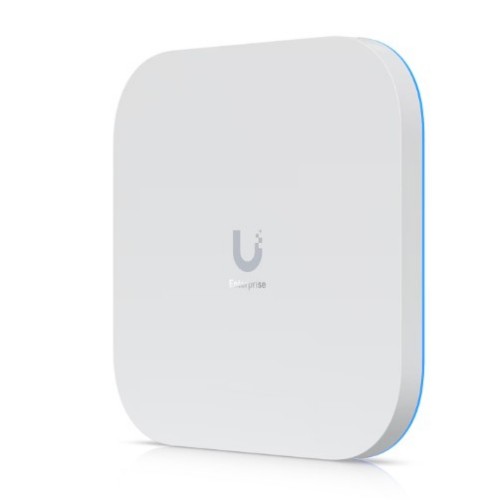

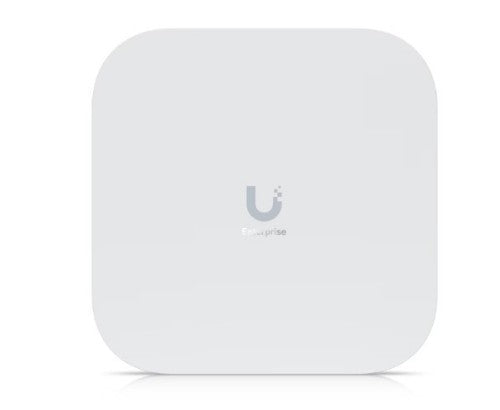

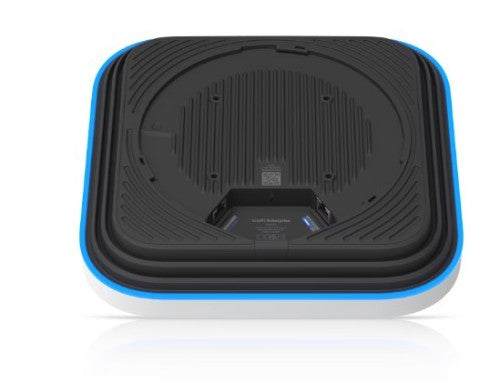

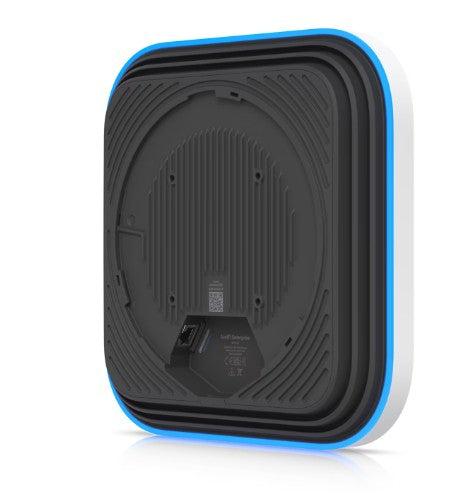

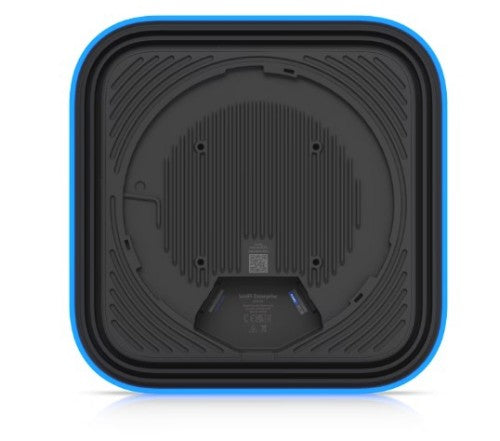

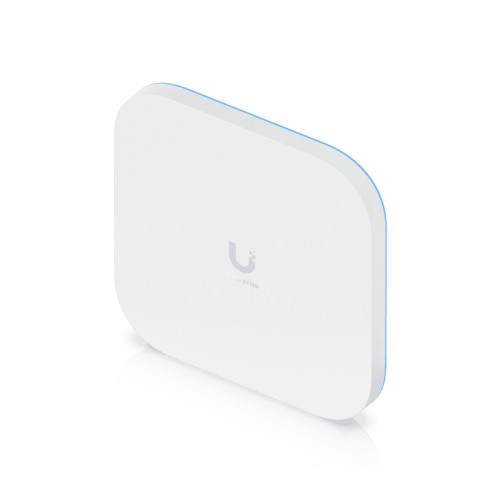

The Ubiquiti UniFi E7 is designed for seamless connectivity and reliable performance in a variety of environments. With a maximum coverage area of up to 2,000 sq. ft, this wall and ceiling-mountable wireless access point supports numerous connected devices while ensuring stable connections. It operates across three Wi-Fi bands: 2.4 GHz, 5 GHz, and 6 GHz, enabling it to deliver maximum data rates of 11.5 Gbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 688 Mbps on 6 GHz. Its internal omnidirectional antenna, with a gain level of 6 dBi, enhances signal distribution in all directions to cater to a larger audience. Built to withstand diverse environmental conditions, the Ubiquiti UniFi E7 functions efficiently in temperatures ranging from -30�C to 50�C and operates in humidity levels from 5% to 95%. The device supports advanced features like 4x4 MU-MIMO technology, VLAN support, Guest Isolation, and a dedicated spectral analysis radio, ensuring optimized network performance. The robust design incorporates aluminum alloy and UV stabilized polycarbonate for durability, complemented by Power over Ethernet (PoE++) capabilities for simplified installation.
Key Product Info
- Covers up to 2,000 sq. ft for extensive wireless reach
- Supports over 1,000 connected devices for maximum connectivity
- Operates on multiple Wi-Fi bands for versatile performance
- Durable construction for reliability in various environmental conditions
- Advanced networking features for enhanced user experience
Product Features
-
Versatile Coverage
This access point offers coverage of up to 2,000 sq. ft, making it suitable for both small and large spaces, ensuring strong wireless connectivity for multiple users. -
High Capacity Connectivity
Able to support over 1,000 connected devices, the E7 is engineered to handle high traffic efficiently, making it ideal for both home and business environments. -
Multiple Wi-Fi Bands
Utilizing 2.4 GHz, 5 GHz, and 6 GHz bands, the E7 provides flexible connectivity options and adapts to various network demands for enhanced performance. -
Robust Environmental Resilience
Designed to endure a temperature range from -30�C to 50�C and humidity from 5% to 95%, ensuring reliable performance in challenging conditions. -
Advanced Networking Features
Includes features like 4x4 MU-MIMO technology, VLAN support, and Guest Isolation, allowing for optimized management of network traffic and enhanced user experience.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Network | |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Maximum data transfer rate | 11500 Mbit/s |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 8600 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Spatial streams | 10 |
| Coverage area | 185 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 30 dBmW |
| Maximum Tx power (6 GHz) | 30 dBmW |
| Security | |
| Security algorithms | PPSK |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 43 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| DC voltage range | 42.5 - 57 V |
| Design | |
| Housing material | Aluminium, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Reset button | Yes |
| Indication | |
| LED indicators | Yes |
| Software | |
| Fast roaming | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 250 mm |
| Weight | 1.8 kg |
| Height | 43.5 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 50 °C |
