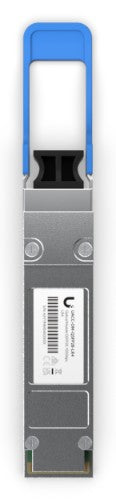

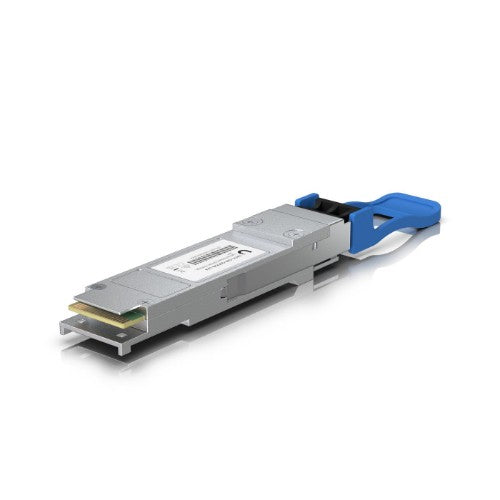

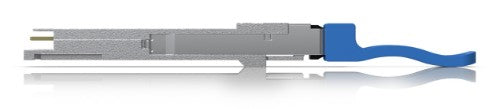

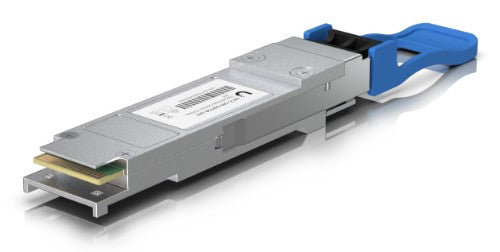

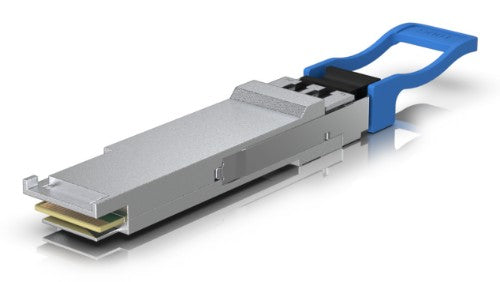

100G, LR4, Single-Mode Optical Module, duplex LC UPC, 10 km
Key Features
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- Duplex LC UPC connector
- Supports single-mode fiber connections up to 10 km
Description
QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Tx wavelength (min) |
1270 nm |
| Tx wavelength (max) |
1309 nm |
| Rx wavelength (min) |
1295 nm |
| Rx wavelength (max) |
1309 nm |
| Fiber optic connector |
LC (UPC) |
| Maximum transfer distance |
10000 m |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 / QSFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| Product colour |
Blue, Grey |
| Features |
|---|
| Product colour |
Blue, Grey |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC (UPC) |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 / QSFP+ |
| Technical details |
|---|
| Maximum transfer distance |
10000 m |
