Description

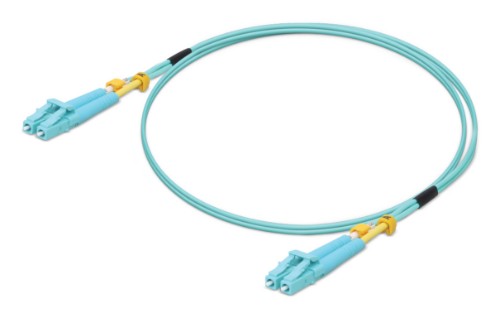

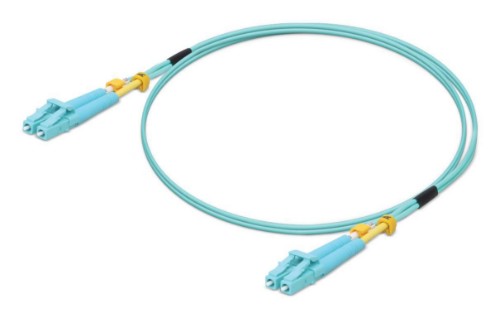

2 m, LC-LC, Duplex, OM3, 10 Gbps
Description
Specifications
| Technical details | |
|---|---|
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Features | |
| Fibre optic type | OM3 |
| Return loss | 50 dB |
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 75 °C |
| Insertion loss | 0.3 dB |
| Data transfer rate | 10 Gbit/s |
| Wavelengths supported | 850,1310 nm |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Cable shape | Round |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Cable length | 2 m |
| Cable diameter | 2 mm |
