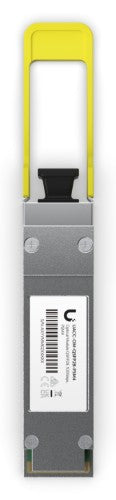

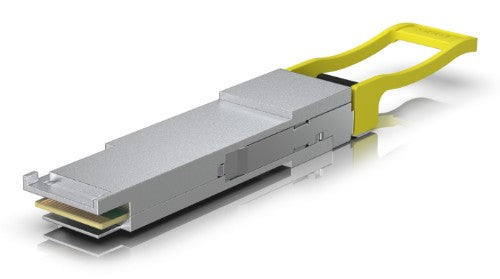

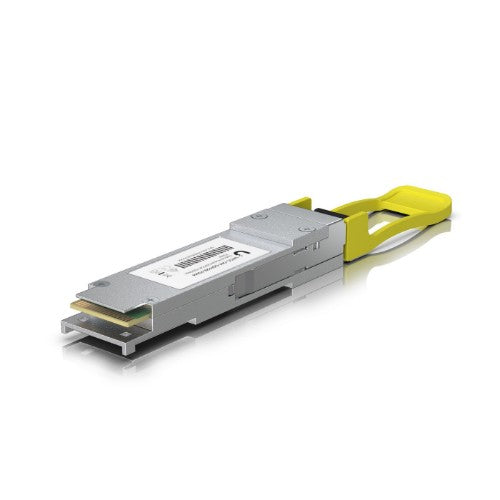

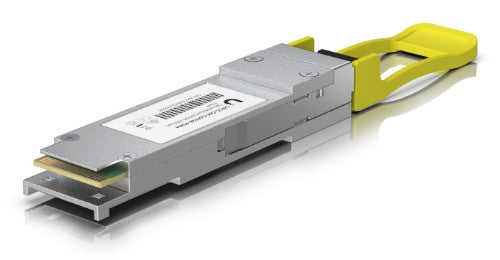

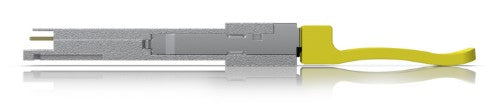

100G, PSM4, Single-Mode Optical Module, MPO-12 APC, 2 km
Key Features
- Max data rate: 100 Gbps
- Compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B APC connector
- Supports single-mode fiber connections up to 2 km
Description
QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Tx wavelength (min) |
1310 nm |
| Rx wavelength (min) |
1310 nm |
| Fiber optic connector |
MPO-12 |
| Maximum transfer distance |
2000 m |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 / QSFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| Product colour |
Grey, Yellow |
| Features |
|---|
| Product colour |
Grey, Yellow |
| Form factor |
QSFP28 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
MPO-12 |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 / QSFP+ |
| Technical details |
|---|
| Maximum transfer distance |
2000 m |
