Description

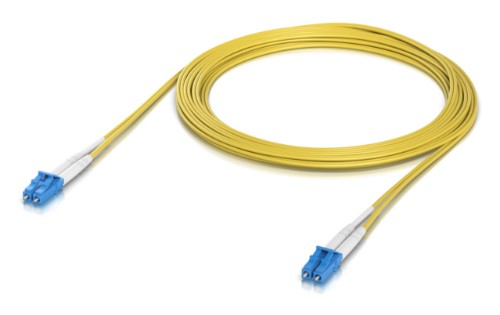

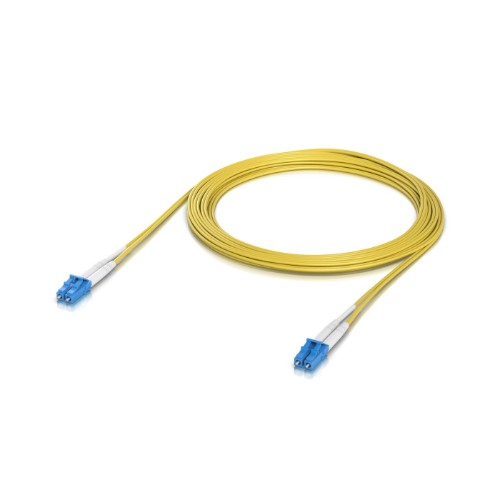

OS2, Duplex LC UPC, Yellow, 5 m
Key Features
- OS2 single-mode fiber
- Duplex LC UPC connectors
- Cable length 0.5 to 30 m
Description
Lightweight fiber patch cable for up to 100G connections.Specifications
| Features | |
|---|---|
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 5 m |
| Full duplex | Yes |
| Insertion loss | 0.3 dB |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 1310,1550 nm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Cable shape | Round |
| Operating temperature (T-T) | -40 - 75 °C |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Cable length | 5 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LC/LC |
| Cable length | 5 m |
| Full duplex | Yes |
| Insertion loss | 0.3 dB |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
