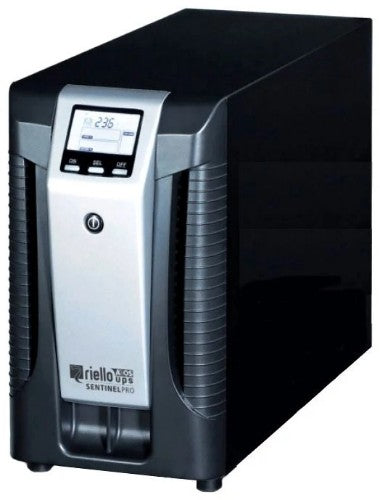

Sentinel Pro SEP 2200 ER
Description
Specifications
| Power | |
|---|---|
| Output power | 1980 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Surge energy rating | 300 J |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output power capacity | 2.2 kVA |
| Charging current | 6 A |
| Performance | |
| UPS topology | Standby (Offline) |
| Waveform | Sine |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 40 dB |
| Features | |
| UPS topology | Standby (Offline) |
| Waveform | Sine |
| Output power | 1980 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Surge energy rating | 300 J |
| Surge protection | Yes |
| Power factor | 0.99 |
| Noise level | 40 dB |
| Crest factor | 3:1 |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Charging current | 6 A |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Charging current | 6 A |
| Design | |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Safety | IEC EN 62040-1; EMC IEC EN 62040-2; |
| Certification | RoHS compliant |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS compliant |
| Safety | IEC EN 62040-1; EMC IEC EN 62040-2; |
| Safety regulation & standards | |
| Safety | IEC EN 62040-1; EMC IEC EN 62040-2; |
| Weight & dimensions | |
| Weight | 14 kg |
| Width | 190 mm |
| Height | 333 mm |
| Depth | 446 mm |
